Description
In the process of use, EVA Foam Filled Fender absorbs the impact energy of the ship through its compression deformation, so as to reduce the damage to the wharf and ship.
The biggest characteristic of Foam Fender is that it has floating performance and is not affected by tidal range. Besides, we can provide a variety of color products according to user requirements to. Compared with the inflatable fender, the use process does not need to inflate, with safety and maintenance free.
Features
1. Maintenance-free: Because EVA Foam Filled Fender does not need to be inflated, it is not afraid of external scratches or pricks.
2. Higher safety: Because in 60% of the cases of compression, the reaction force is obvious, the absorption of energy is very high.
3. Practical: Because its buoyancy can not be affected by the ebb and flow of the tide. Although solid, it is light in weight and easy to install.
4. Good flexibility: The appearance color of our Dock Foam Fender may allow the customer to choose arbitrarily.
Factors on design and selection of foam filled fender
1) Maximum Energy Absorption
2) Reaction Force
3) The distance requirements when two ships berth or one ship goes alongside wharf, including the maximum distance and the minimum distance
4) The size of vessels
5) The factors on storm from real environments and temperature changes.
Specification
|
Diameter x Length mm |
Compression 60% |
Weight |
|
|
Reaction Force/KN |
Energy Absorption/ KJ |
(KG) |
|
|
500X1000 |
71 |
8 |
34 |
|
700X1500 |
161 |
27 |
101 |
|
1000X1500 |
205 |
49 |
206 |
|
1000X2000 |
274 |
64 |
275 |
|
1200X2000 |
337 |
93 |
405 |
|
1200x2400 |
390 |
110 |
475 |
|
1350X2500 |
463 |
145 |
626 |
|
1500X3000 |
624 |
216 |
927 |
|
1700X3000 |
696 |
273 |
1191 |
|
2000X3500 |
990 |
456 |
1923 |
|
2000x4000 |
1110 |
505 |
2298 |
Advantages
1.Colorful
2.Unsinkable design
3.Can as float rod on the sea
4.Flexible,cost-saving
5.Remains fully functional even if skin is punctured
6.Easy to install,move and use. Low maintenance.
Application of foam fender

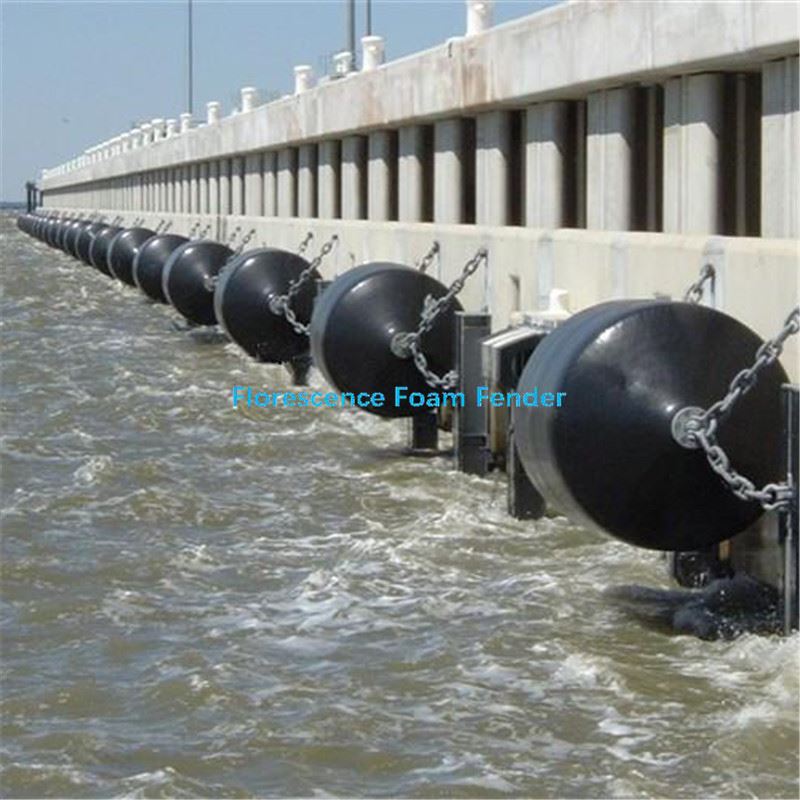

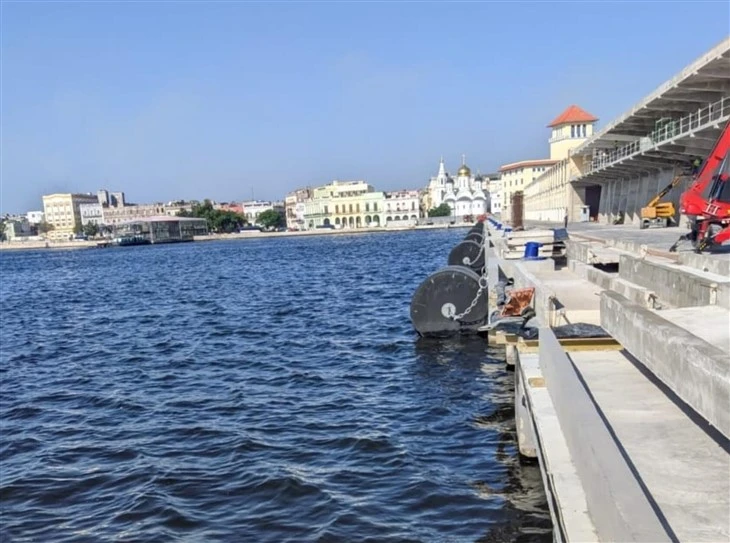

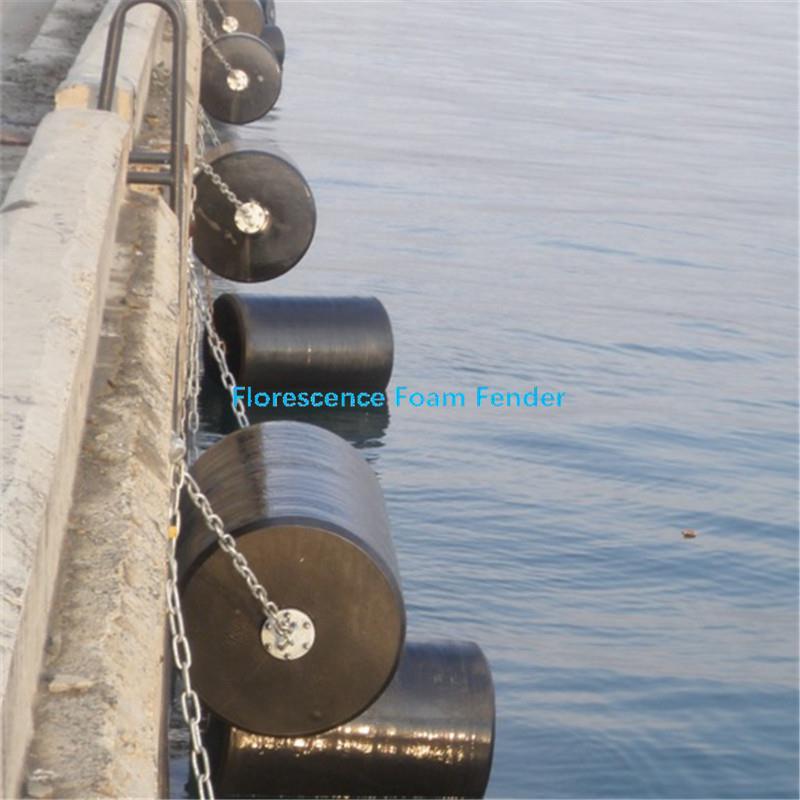

1.Foam-filled fenders are used to provide cushioning and protection for ships, and are widely used in ships, offshore platforms, offshore, facilities, terminals and yachts.
2.It can be used for tugboats, work boats, pilot boats, high seas terminals, gravity ports, especially large tidal piers.
Foam fenders are also a viable option for ship-to-ship (STS) operations.
