QINGDAO FLORESCENCE MARINE SUPPLY CO., LTD. is a leading global manufacturer of high-performance marine rubber fender system and mooring bollard system with good reputation all over the world, specializing in the designing and engineering and manufacturing of marine rubber fenders and mooring bollards with over 20 years of experience under quality management system ISO 9001: 2015. FLORESCENCE has set up the National Standards for rubber fenders in China. All FLORESCENCE Marine fenders are approved by BV CCS ABS Etc.. Moreover, Florescence can also provide CE Certificate for EU customers.

FL Cone Fender
Florescence Super Cone Fenders (SCN) are the latest generation of 'cell' fenders, with optimal performance and efficiency. We can produce FLCone500H- FLcone2500H.
read more
Cell Fender
Cell Fender is a new type of product which can be installed on the dock or ship and play the role of anti-collision buffer. The product selects the high quality material and the special...
read more
Arch Fender
Florescence Arch Fenders (universally classified as V-type rubber fenders) are rugged, time-tested anti-collision systems designed to optimize energy absorption on concrete wharves and mooring...
read more
D Type Marine Rubber Fender
1.High energy absorption efficiency, thanks to its optimized arch design, which ensures outstanding performance under various berthing conditions. 2.Long service life with high-strength rubber...
read more
Marine Mooring Bollard
Florescence marine is a long history manufacturer of marine bollards and cleats worldwide.Our range of bollards and cleatsis unsurpassed by any other manufacturer or supplier. Maritime can provide...
read more
Florescence DD DO Type Marine Rubber Fender To Dock
DO Fenders are used for tugs, barges, work boats, and pilot boats as side belting and protective fenders against heavy rubbing, brushing and pushing forces. These DO-Type Fenders having higher...
read more
Rubber Cylindrical Fender
information:...
read more
Dock Quay V Fender
Ship and Dock Arch V Type Rubber Fender ----ISO Certificated Arch rubber fender Florescence's wide-ranging rubber fenders are manufactured in accordance with PIANC guidelines and come in a...
read more
Dock Rubber Cylindrical Fender
FLORESCENCE high quality cylindrical fenders for docking
read more
Marine Cone Rubber Fender
Cone rubber fenders are the latest generation of 'cell' fenders, with optimal performance and efficiency. The conical body shape makes the cone rubber fenders very stable even at large...
read more
Dock Arch Rubber Fender
Compared to conventional arched fenders, arched rubber fenders are optimized for increased energy absorption, providing reliable, trouble-free service for a wide range of berths even under the...
read more
Super Durable Cell Fender
Florescence Super Cell Fender:cell fenders have a cell shape and offer support to remain stable during heavy impact angles from large ships.The cell design helps this type of fender to withstand...
read more

First 12 3 4 5 Last

We can produce all kinds of marine fenders including super cone fender, super cell fender, arch fender, cylindrical rubber fender, pneumatic rubber fender, foam fender, leg fender, D fender, square fender, roller fender, M fender, TTV Fender, tugboat fender and mooring bollards in cast iron or cast steel along with the related steel panel structure. We provide a wide range of fender systems that can be used from small yachts to the largest vessels docking at the ports all over the world. All our marine fenders and mooring bollards are tested complying to the most rigorous standards per the latest international requirements.

We have been working with many Ports Authorities and shipyards worldwide and have exported to more than 50 countries including USA, Canada, Mexico, Panama, Brazil, Italy, Greece, Croatia, Russia, Spain, United Kingdom, Singapore, Malaysia, Philippines, UAE, Bangladesh, Indonesia Etc.

DESIGN

Our team generates 3D CAD designs, application-engineering drawings, a bill of materials, finite engineering analyses and calculations for both our fender systems and marine technology solutions.

Manufacture

Our entire product range is manufactured in-house, meaning we have full control over the design and quality of everything we produce. Our strategically located, stateof-the-art facilities ensure our global, industry leading manufacturing capability.

Across our entire product range, stringent testing comes as standard at every step in our in-house manufacturing process. We ensure that life-cycle and performance of our entire product range meets your specifications, and more.

Installation

Dedicated project management, from solution design right the way through to on-site installation support. We design products and solutions that always consider ease of installation and future maintenance requirements.

Support

We provide 12 month guarantee. And this service doesn’t stop after a product is installed. You have our full support throughout the entire lifetime of your project, including customized training programs, maintenance and on-site service and support.

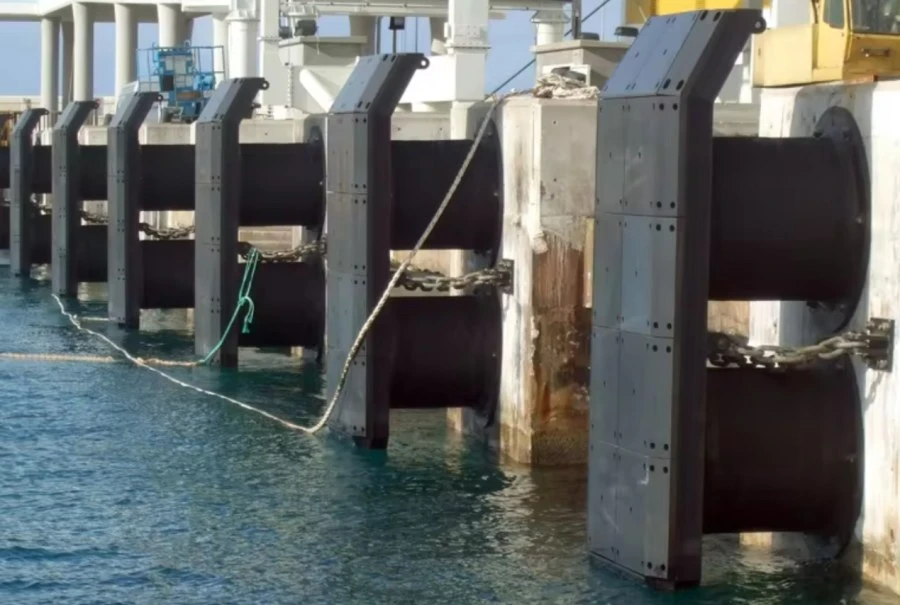

SUPER CELL FENDER

Super cell fender is improved over the ordinary type. It is the most commonly used fender in the world. The circular mounting base of the super cell fender makes it an extremely stable fender type. Super Cell Fender has high absorption energy per unit weight. Also among all types of compressed fenders, it has the lowest compression performance change. Super cell fenders are available in a wild range of sizes from 400H to 3000H. Super cell fender has a better overloading capacity than any other fender type.

FEATURES

• Low reaction force and high capability of energy absorption

• Due to its structure, it has the characteristic of higher force absorption and long usage life

• Good energy absorption to reaction force ratio (E/R)

• Good shear force resistance due to the large diameter of the fender flanges

• Come in a wide range of standard sizes

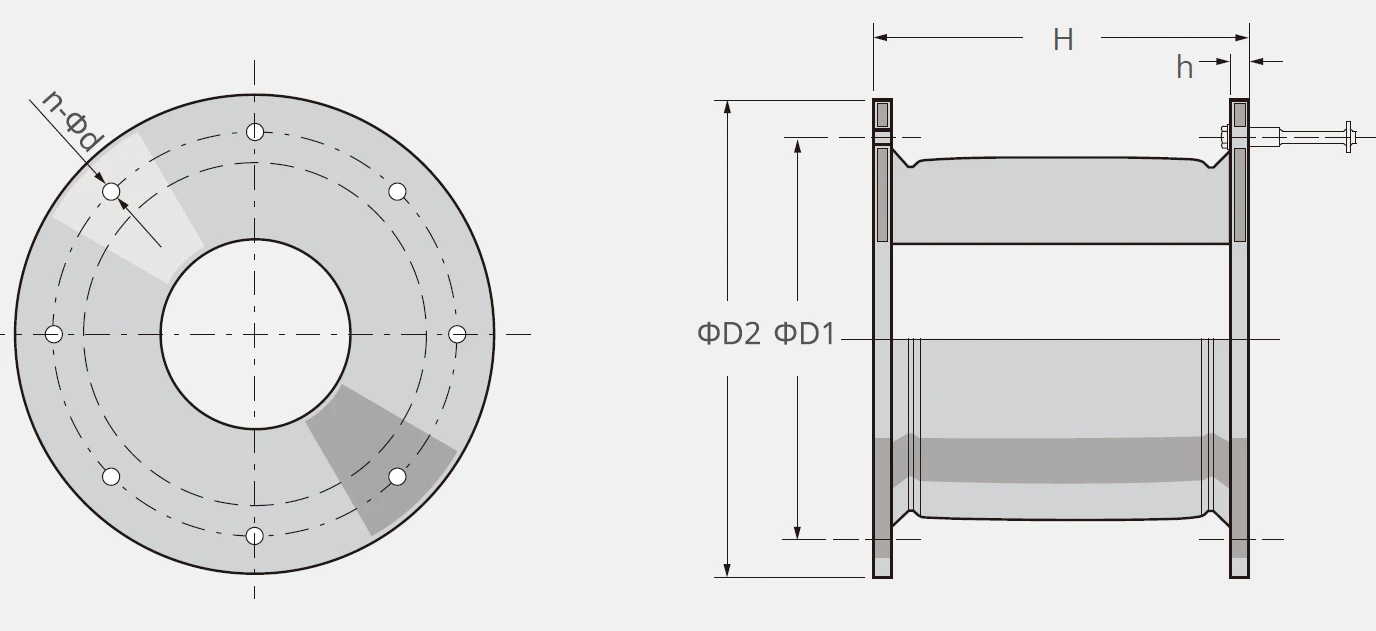

Model	H	ΦD1	ΦD2	h	n	Φd
FLSC 400H	400	550	650	25	4	30
FLSC 500H	500	550	650	25	4	32
FLSC 630H	630	700	840	30	4	39
FLSC 800H	800	900	1050	30	6	40
FLSC 1000H	1000	1100	1300	35	6	47
FLSC 1150H	1150	1300	1500	40	6	50
FLSC 1250H	1250	1450	1650	45	6	53
FLSC 1450H	1450	1650	1850	47	6	61
FLSC 1600H	1600	1800	2000	50	8	61
FLSC 1700H	1700	1900	2100	55	8	66
FLSC 2000H	2000	2000	2200	55	8	74
FLSC 2250H	2250	2300	2550	60	10	74
FLSC 2500H	2500	2700	2950	70	10	90
FLSC 3000H	3000	3150	3350	75	12	90

The sizes listed above are partial and only for reference, other sizes besides the above can be customized. Contact us for specific model capacities and safety factors.

DETAILS OF SUPER CELL FENDER

1. Super cell fender
2. Steel front panel
3. UHMW-PE facing panel
4. Chain system
5. Anchors
6. Pre-built parts

Applications

• Oil and LNG facilities

• Container berths

• Bulk terminals

• RoRo and cruise terminals

• Multi-user berths

• Offshore platforms

P.S. We provide customized services not only for fender specification, but also for project design, installation and specified accessories to meet various requirements of different customers.

Super Cone Fender

Cone Fender is the latest generation of “Cell Fender” combining excellent energy capacity with low reaction force to give the most efficient performance of any fender type. The conical shape keeps the fender body stable under all combinations of axial, shear and angular loading. Hence, it is ideal for berths where large berthing angles and heavy impacts need to be accommodated. All Cone Fenders are single piece moldings so they are robust, long lasting and easy to install. In most projects, the frontal frame is generally used in conjunction with Cone Fender System. Generally the frontal frame is including Steel Panel and UHMW-PE facing pad. Besides that they have also been used with great success behind fender piles, in Parallel Motion systems and for numerous other applications.

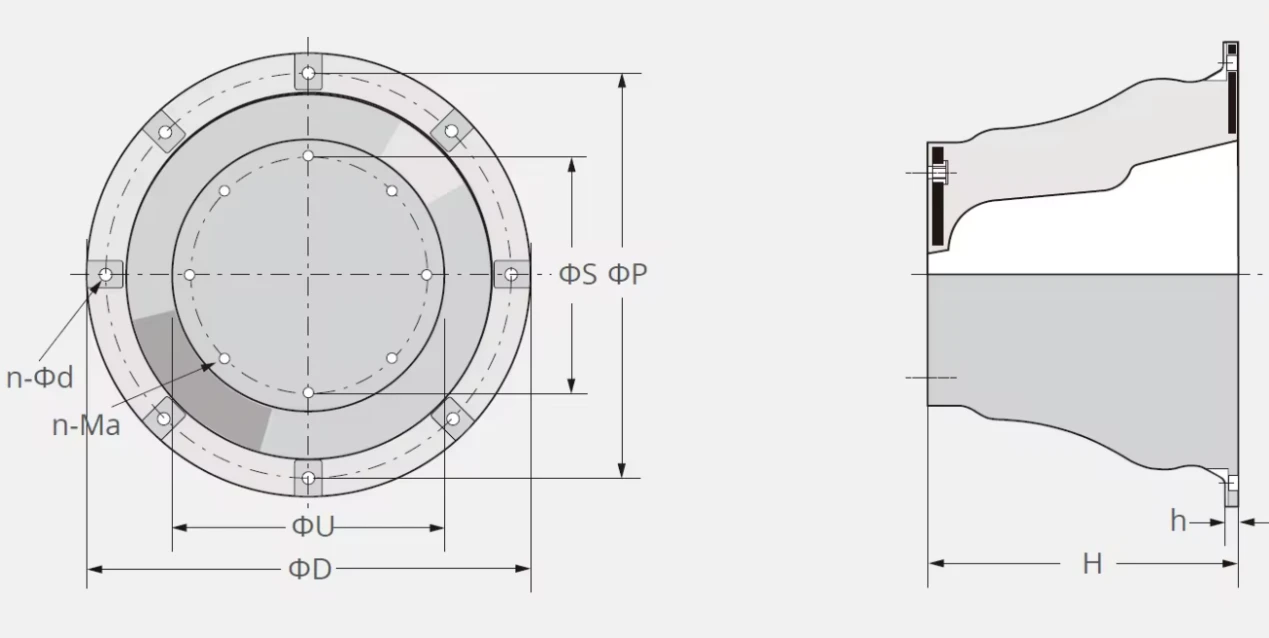

productcate-1269-638

Model	H	h	ΦU	ΦD	ΦS	ΦP	n	n-Ma	n-Φd
FLSO 300H	300	13.5	255	450	195	405	4	M16	20
FLSO 350H	350	25	300	570	235	510	4	M20	25
FLSO 400H	400	18	340	600	260	540	4	M20	25
FLSO 500H	500	25	425	750	325	675	4	M24	30
FLSO 600H	600	27	510	900	390	810	6	M24	30
FLSO 700H	700	32	585	1050	455	945	6	M30	38
FLSO 800H	800	36	680	1200	520	1080	6	M36	44
FLSO 900H	900	41	765	1350	585	1215	6	M36	44
FLSO 1000H	1000	45	850	1500	650	1350	6	M42	56
FLSO 1050H	1050	55	1030	1680	900	1530	6	M36	44
FLSO 1100H	1100	50	935	1650	715	1485	6	M42	50
FLSO 1150H	1150	52	998	1725	750	1550	6	M42	56
FLSO 1200H	1200	54	1020	1800	780	1620	8	M42	50
FLSO 1300H	1300	59	1105	1950	845	1755	8	M48	60
FLSO 1400H	1400	66	1190	2100	930	1890	8	M48	60
FLSO 1600H	1600	72	1360	2400	1060	2160	8	M48	70
FLSO 1800H	1800	78	1530	2880	1190	2430	10	M56	76
FLSO 2000H	2000	80	1900	3200	1540	2920	10	M56	76

The sizes listed above are partial and only for reference, other sizes besides the above can be customized. Contact us for specific model capacities and safety factors.

Fender & Accesssories

1. Super cone fender
2. Steel front panel
3. UHMW-PE facing panel
4. Chain system
5. Anchors

6. Pre-built parts

Application

* Tanker Berths

* Container Terminals

* RoRo & Cruise Berths

* Bulk Terminals

* Dolphins & Monopile

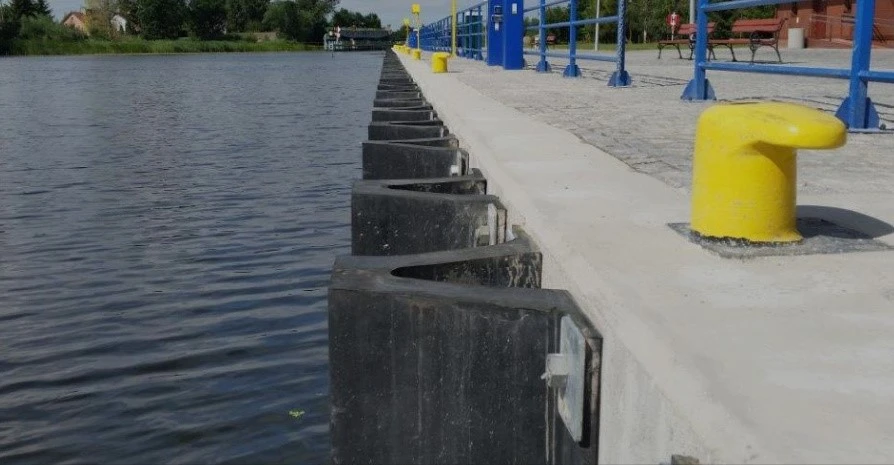

Super Arch Fenders

Arch Fenders are being widely used in port facility due to their high energy absorption and low reaction force and stable performance as well as high durability following simple structure. They are particularly useful for vessels with high allowable hull pressures and for locations where mounting space is limited.

FEATURES

• Rugged single piece molding for long service life
• Excellent shear resistance
• Good weight support panels generally eliminates weight chains
• Large range of sizes, lengths and Energy Indices
• Non-standard lengths, Energy Index and end profile available

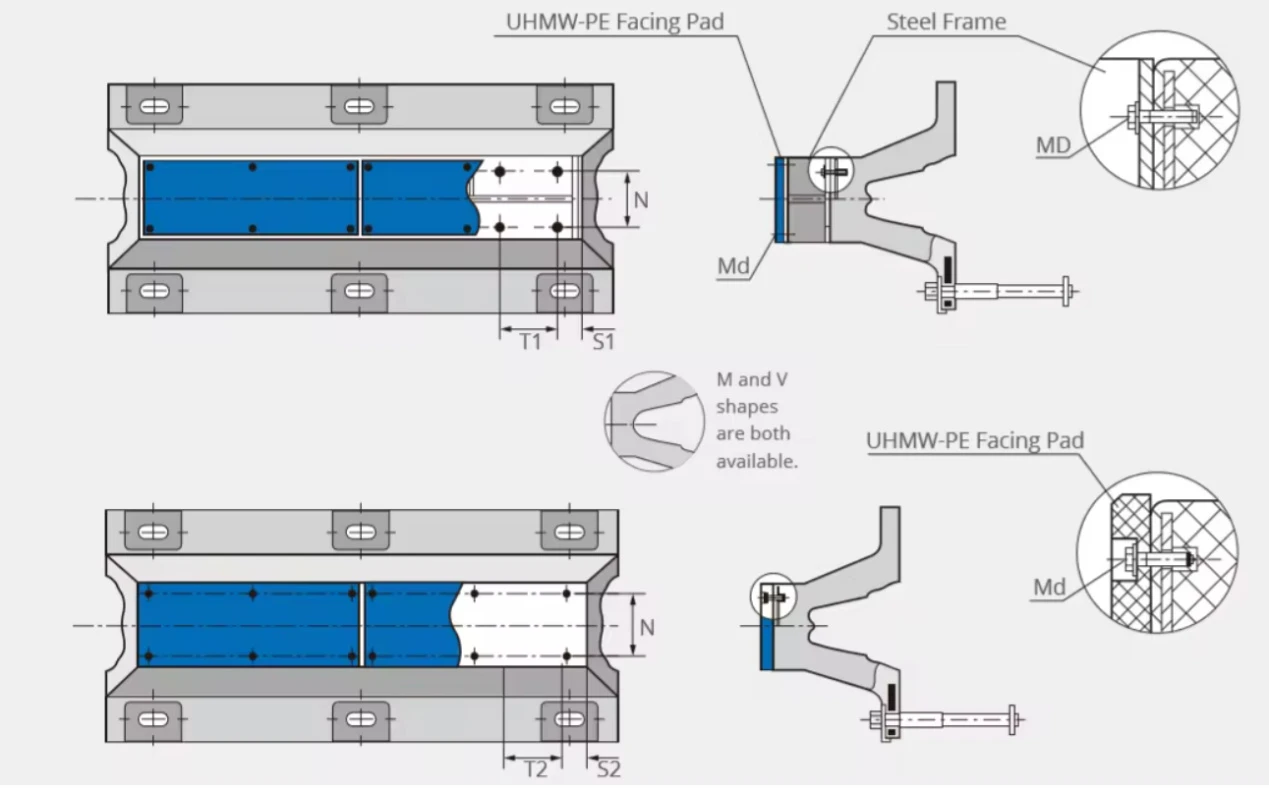

Model	N	Md	Steel Frame			UHME-PE Pad		Length
Model	N	Md	T1	S1	MD	T2	S2	Length
FLDA-B150H	0	M16	250-300	125	M16	300-400	60	≤3500
FLDA-B200H	0	M16	250-300	125	M16	300-400	60	≤3500
FLDA-B250H	64	M16	250-300	125	M20	300-400	65-85	≤3500
FLDA-B300H	105	M16	250-300	125	M24	300-400	65-85	≤3500
FLDA-B400H	180	M16	250-300	125	M27	300-400	65-85	≤3500
FLDA-B500H	245	M16	250-300	125	M30	300-400	65-85	≤3500
FLDA-B600H	310	M16	250-300	125	M30	300-400	65-85	≤3500
FLDA-B800H	440	M16	250-300	125	M36	300-400	65-85	≤3500
FLDA-B1000H	570	M16	250-300	125	M36	300-400	65-85	≤3500

Fender & Accessories

1. Super Arch fender

2. Steel front panel

3. UHMW-PE facing panel

4. Anchors

5. Bolts & Nuts

Application

• RoRo berths

• General Cargo

• Workboat harbours

• Barge and tug berths

P.S. We provide customized services not only for fender specification, but also for project design, installation and specified accessories to meet various requirements of different customers.

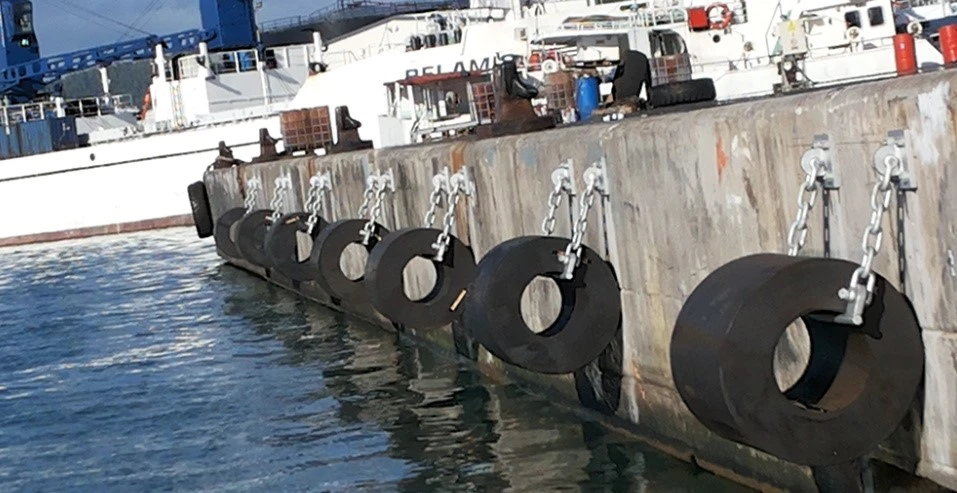

Cylindrical Fender

Cylindrical fender is simple to install and operate which makes these units an economical solution for remote locations and for multi user berths where vessel types cannot always be predicted. With advantages of progressive load-deflection Cylindrical fenders are suitable for both large and small vessels, and with a wide choice of sizes and diameter ratios , the performance of cylindrical fender can be closely matched to requirements in each case.

FEATURES

• Bulk cargo berths

• General cargo quays

• Fishing and workboat berths

• Pontoons and floating structures

• RoRo and ferry terminals

• Tug havens

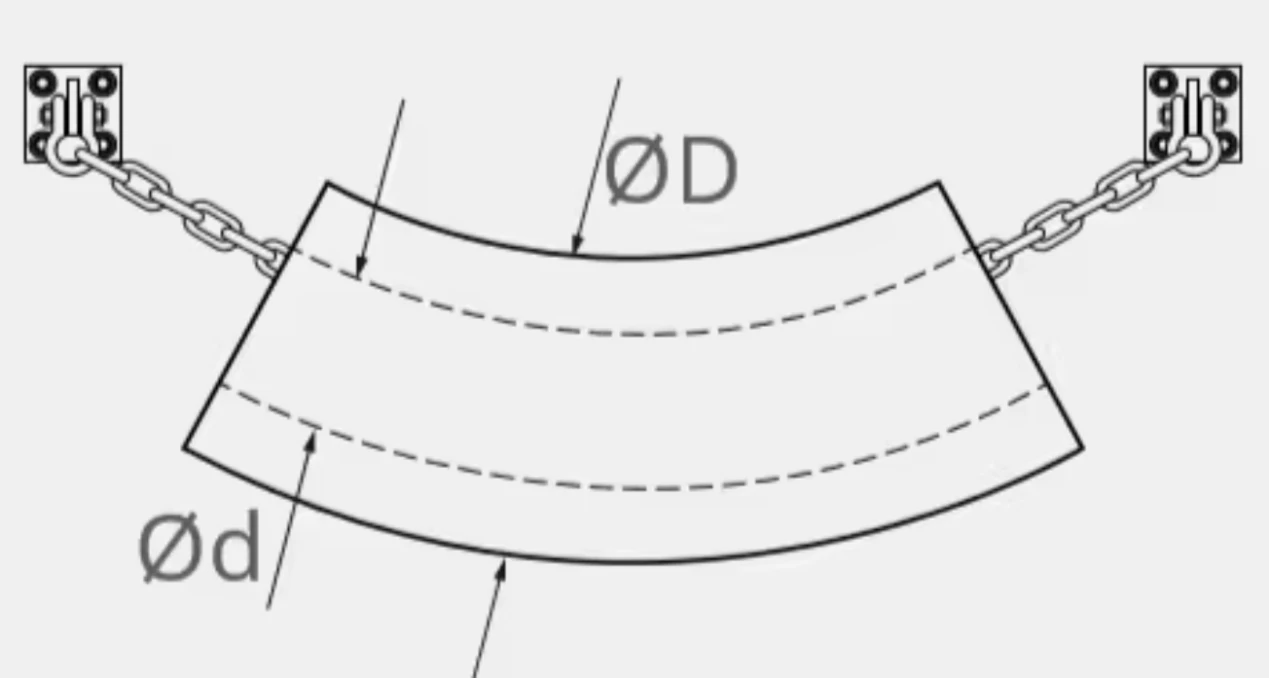

Model	L	ØD	Ød	Chain	U-ring
FLCY150x75	＜6000	150	75	Ø16	Ø40
FLCY200x100		200	100	Ø18	Ø40
FLCY250x125		250	125	Ø20	Ø40
FLCY300x150		300	150	Ø24	Ø40
FLCY350x175		350	175	Ø25	Ø40
FLCY400x200		400	200	Ø28	Ø50
FLCY500x250		500	250	Ø32	Ø50
FLCY600x300		600	300	Ø36	Ø50
FLCY700x350		700	350	Ø36	Ø50

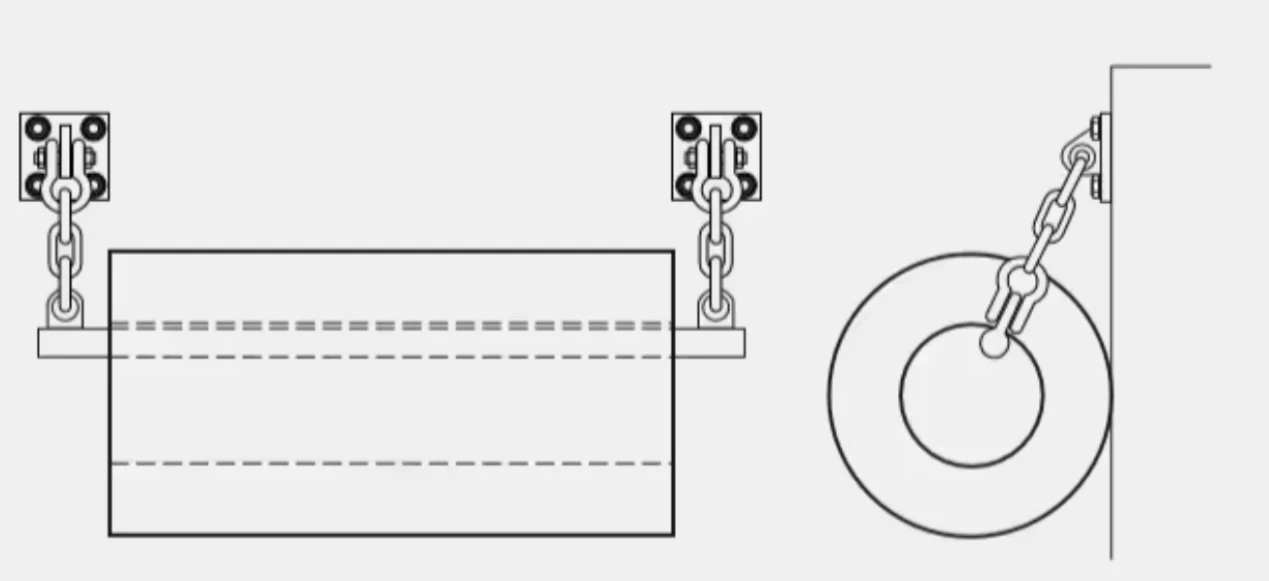

productcate-1269-581

Model	L	ØD	Ød	20Chain	U-ring
FLCY800x400	1000 1500 2000 2500 3000	800	400	Ø25 Ø28 Ø32 Ø34 Ø40	Ø55
FLCY900x450	1000 1500 2000 2500 3000	900	450	Ø28 Ø30 Ø34 Ø38 Ø42	Ø60
FLCY1000x500	1000 1500 2000 2500 3000	1000	500	Ø28 Ø30 Ø38 Ø40 Ø44	Ø60
FLCY1100x550	1000 1500 2000 2500 3000	1100	550	Ø30 Ø32 Ø38 Ø40 Ø44	Ø65
FLCY1200x600	1000 1500 2000 2500 3000	1200	600	Ø30 Ø32 Ø38 Ø42 Ø46	Ø65
FLCY1300x600	1000 1500 2000 2500 3000	1300	650	Ø30 Ø32 Ø38 Ø42 Ø48	Ø65
FLCY1400x700	1000 1500 2000 2500 3000	1400	700	Ø34 Ø38 Ø44 Ø48 Ø52	Ø65
FLCY1500x750	1000 1500 2000 2500 3000	1500	750	Ø36 Ø40 Ø46 Ø48 Ø52	Ø65
FLCY1600x800	1000 1500 2000 2500 3000	1600	800	Ø38 Ø40 Ø46 Ø50 Ø54	-

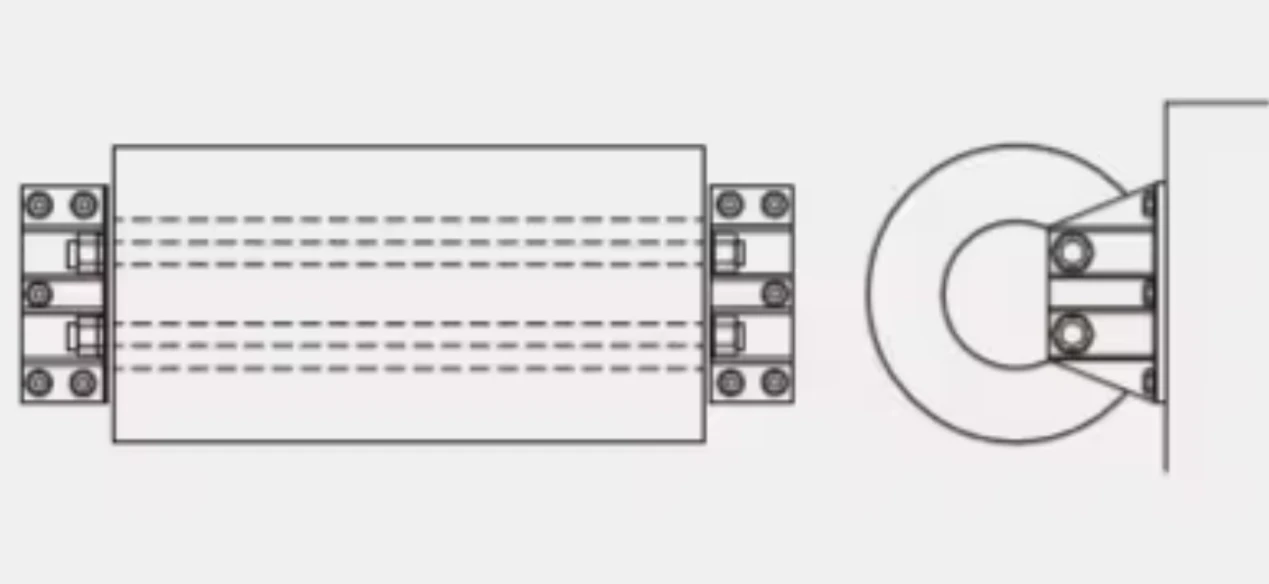

productcate-1269-584

Model	L	ØD	Ød	Bracket
FLCY1700x850	1000 1500 2000 2500 3000	1700	850	Can be customized according to specification
FLCY1800x900	1000 1500 2000 2500 3000	1800	900
FLCY1900x950	1000 1500 2000 2500 3000	1900	950
FLCY2000x1000	1000 1500 2000 2500 3000	2000	1000

The sizes listed above are partial and only for reference, other sizes besides the above can be customized. Contact us for specific model capacities and safety factors.

Installation Details

productcate-936-749

Fender & Accessories

1. Cylindrical fender

2. Center Support Bar

3. Chain System

4. Pre-Built Sets

5. Bolts & Nuts

Application

• Bulk cargo berths

• General cargo quays

• Fishing and workboat berths

• Pontoons and floating structures

• RoRo and ferry terminals

• Tug havens

P.S. There are several installation methods with chain/steel bar/special ladder brackets for different weight of cylindrical fender, please choose suitable one according to actual fender size.

We provide customized services not only for fender specification, but also for project design, installation and specified accessories to meet various requirements of different customers.

Why Choose us

WIDE RANGE OF SPECIFICATIONS

We can produce almost all specification products according to drawings

PROFESSIONAL TECHNICAL TEAM

We have professional technical team providing customers safe and efficient solution to berthing and mooring.

RAPID DELIVERY

Small order takes about 7days production; Medium order takes about 15days production; Large order takes about 30days production

OEM/ODM EXPERIENCE

We have over 30 years OEM experience

PRODUCT QUALITY

Florescence has got IS09001 quality management system, BV approved fender types as Super Cell Fender System, MV Element Fender System /Leg Fender System, D Fender System, Cylindrical Rubber Fender System, Pneumatic Rubber Fender System, Arch Fender System, Super M Fender System, TTV Fender System, Super Cone Fender System, Super Drum Fender System according to PIANC Guideline. Pneumatic type fender fully complies with ISO 17357-2014 standard.

ADVANCED EQUIPMENTS

Our Quality Control Center is equipped with complete testing equipments therefore all quality tests will be finished in our
factory prior to delivery. Those essential tests include Compression Test, Tensile Test, Ozone Resistance Test, Abrasion Resistance, etc.

We're known as one of the most professional marine fender manufacturers and suppliers in China. Please be free to buy bulk marine fender at reasonable price from our factory.
