Pneumatic Type Yokohama Fender information:
|
item
|
value
|
|
Place of Origin
|
China
|
|
Shandong
|
|
|
Brand Name
|
Florescence
|
|
Part
|
flange
|
|
Product name
|
Pneumatic Type Yokohama Fender |
|
Place of Origin
|
Shandong,China
|
|
Material
|
Natural Rubber
|
|
Diameter
|
0.5-4.5m
|
|
Length
|
1-9m
|
|
Weight
|
as product's size
|
|
Initial Pressure
|
50kpa,80kpa
|
|
Standard
|
ISO 17357
|
|
Lifespan
|
6-8 Years
|
|
Warranty
|
24months
|
Materials:
1. Material test for rubber
The material test of the outer rubber and the inner rubber shall be conducted in accordance with the physical properties of inner and outer rubber required by ISO 17357:2002
2.Dimensional inspection
The dimension of all the fenders shall be inspected at the initial internal pressure and the results shall be within the following tolerances:
- length: +10%, -5%;
-diameter: +10%,-5%
3.Air-leakage test
The air-leakage test shall be conducted on all the fenders at initial pressure for more than 30 min, and the test results shall
confirm that there is no air leakage.
4.Hydrostatic-pressure test
The hydrostatic-pressure test shall be performed for 10 min at the hydrostatic-pressure shown in "test pressure at 0%
deflection".Maximum temporary elongation: 10%
2.Dimensional inspection
The dimension of all the fenders shall be inspected at the initial internal pressure and the results shall be within the following tolerances:
- length: +10%, -5%;
-diameter: +10%,-5%
3.Air-leakage test
The air-leakage test shall be conducted on all the fenders at initial pressure for more than 30 min, and the test results shall
confirm that there is no air leakage.
4.Hydrostatic-pressure test
The hydrostatic-pressure test shall be performed for 10 min at the hydrostatic-pressure shown in "test pressure at 0%
deflection".Maximum temporary elongation: 10%
Pneumatic Dock Fender Key Attributes:
1.High energy absorption with a low reaction force
1.High energy absorption with a low reaction force
2.Light weight,portable and floatable ,can be installed and replaced easily
3.Heavy duty and long service life-over 10 years
4.Supplied as sling type (bode only) or with chain and tire net for protection of the fender body
5.Sizes from 0.3m diameter *0.6m length up to 4.5m*12m length

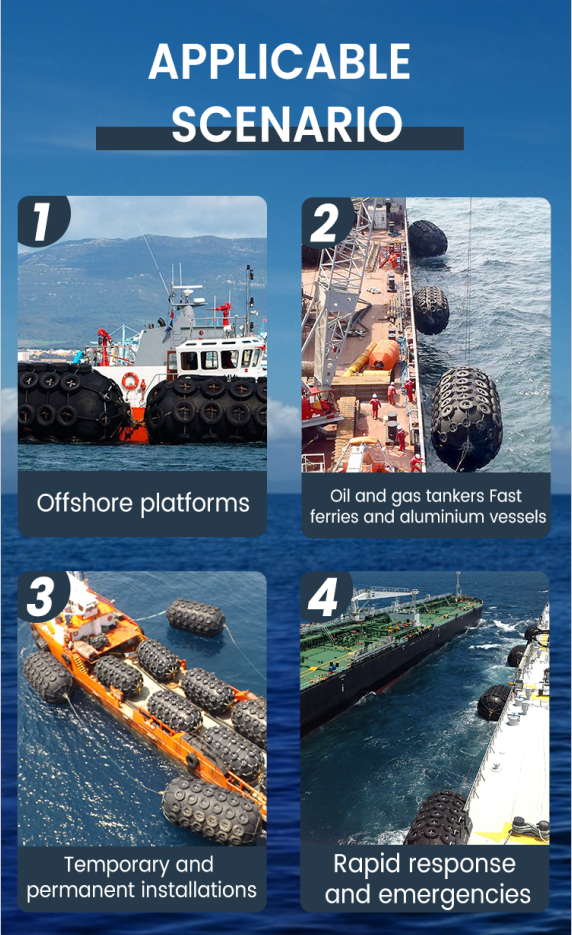

6.Suitable for locations with large and small tidal differences
3.Heavy duty and long service life-over 10 years
4.Supplied as sling type (bode only) or with chain and tire net for protection of the fender body
5.Sizes from 0.3m diameter *0.6m length up to 4.5m*12m length
6.Suitable for locations with large and small tidal differences
Yokohama fender durability
Constructed using several layers of strong tyre cord arranged at optimum angles, Yokohama's floating fenders are designed to distribute load and stress evenly. Extremely resistant to pressure and cutting, they are able to withstand abrasion during adverse weather conditions meaning they are ideally suited to harsh marine environments.
Constructed using several layers of strong tyre cord arranged at optimum angles, Yokohama's floating fenders are designed to distribute load and stress evenly. Extremely resistant to pressure and cutting, they are able to withstand abrasion during adverse weather conditions meaning they are ideally suited to harsh marine environments.
Yokohama type fender performance
Reliant on the compressive elasticity of air, Yokohama pneumatic fenders show no deterioration or variation in performance due to fatigue or extremely low temperatures (-50°C and below) thereby negating the need for owners to make regular replacements.
Reliant on the compressive elasticity of air, Yokohama pneumatic fenders show no deterioration or variation in performance due to fatigue or extremely low temperatures (-50°C and below) thereby negating the need for owners to make regular replacements.
