Yokohama Type Pneumatic Rubber Fender

Name: China Yokohama Type Pneumatic Rubber Fender Suppliers and Manufacturers - Factory Price Yokohama Type Pneumatic Rubber Fender - Florescence
Brand: Florescence
SKU: 81749785

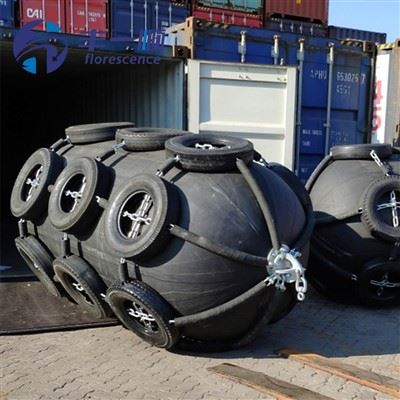

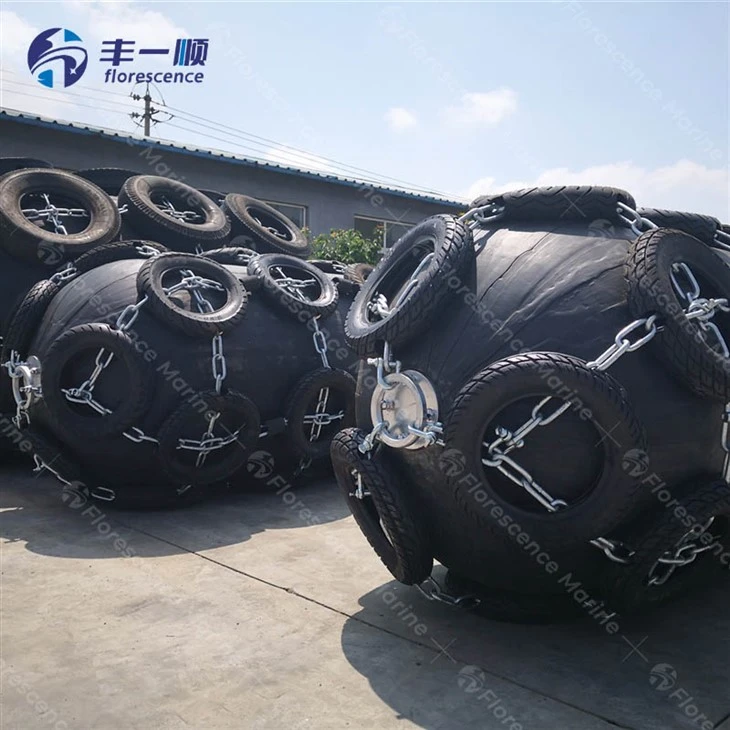

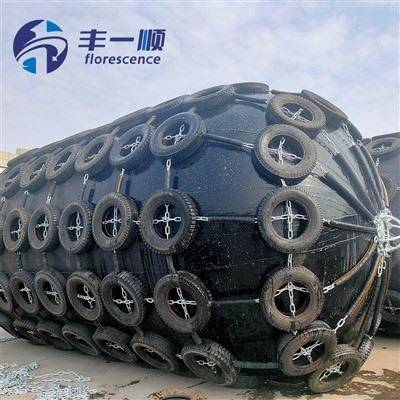

Yokohama type pneumatic fenders are also known as chain and tire mesh fenders. It is usually installed at the terminal or on the ship and its purpose is to absorb or reduce the collision energy between the ship and the ship.

Product description:

Yokohama-Type Fenders (Chain & Tire Mesh Fenders)
Yokohama-type fenders, commonly referred to as chain and tire mesh fenders, are typically installed on vessels or at terminals to absorb and mitigate collision energy during ship-to-ship contact. Unlike standard chain and tire mesh fenders, boat pneumatic fenders are reinforced with high-performance aircraft tires, offering superior energy absorption and compression resistance.

All pneumatic rubber fenders are manufactured in strict compliance with the ISO 17357:2002 international quality standard and are distributed globally.

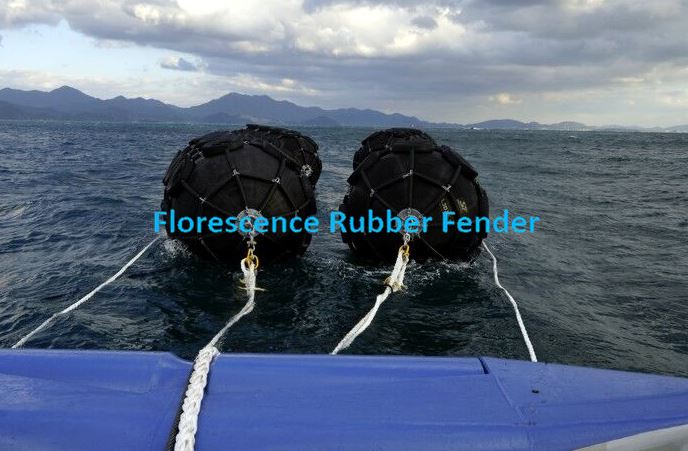

Floating Pneumatic Fenders for STS & Terminal Operations
Widely used in ship-to-ship (STS) transfers and terminal operations, floating pneumatic fenders have been a trusted solution since their inception. To date, over 40,000 units have been supplied worldwide for both STS and ship-to-dock applications, serving our valued customers. These fenders are essential for ensuring safe and efficient ship berthing and mooring operations.

Structure：

1.Outer Rubber

Cover outside on the ball of rubber layer, which is used to protect skeleton material and inner rubber ball from damage of external

force, the main features: high strength, wear resistance, ageing resistance and tear resistance.

2. Synthetic cord reinforced rubber layer

Reinforced cord rubber layer is composed of winding Synthetic cord layer, It is mainly used for maintain the internal air pressure,

which has good elasticity, no deformation and high power etc.

3. Inner Rubber

On the ball inside the rubber layer, which is used to prevent air leakage and control the ball pressure.

4. End Flange

The metal parts at both ends of fender, which can be fitted with charging valve and safety valve.

Advantages:

1. High energy absorption, low reaction and hull pressure .

2. Suitable for small and large tidal ranges .

3. Easy to use and install.

4. Strong fender wall & High duty aircraft tyres net.

Pneumatic fender (2)

Florescence Pneumatic Fender standard sizes

Specification	Initial Internal Pressure 50kpa	Initial Internal Pressure 80kpa
D*L(mm)	R(KN)	GEA(KJ)	R(KN)	GEA(KJ)
500*1000	64	6	83	8
600*1000	74	8	96	11
700*1500	137	17	137	17
1000*1500	182	32	235	44
1000*2000	257	45	335	63
1200*2000	297	63	386	86
1350*2500	427	102	554	140
1500*3000	579	153	751	211
1700*3000	639	191	830	263
2000*3500	875	308	1138	424
3000*5000	2104	1210	2709	1571
3000*6000	2583	1485	3292	1888
3300*4500	1884	1175	2476	1640
3300*6500	3015	1814	3961	2532
3300*10600	5257	3067	6907	4281
4500*9000	5747	4752	7551	6633
Other custom sizes also available
