Marine Docking Launching Lifting Airbag

Marine Docking Launching Lifting Airbag

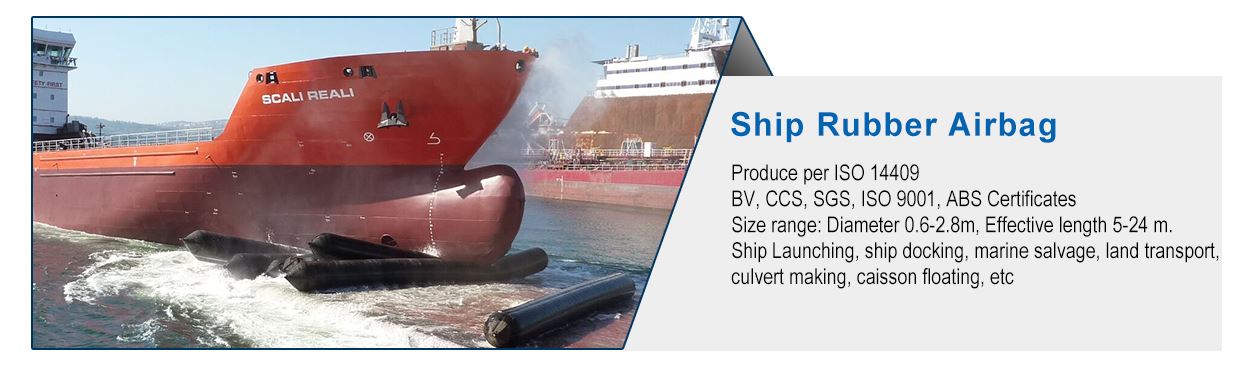

Marine airbag is also famous as rubber airbag, ship rubber roller, ship lifting airbag, boat salvage airbags, inflatable airbag, ship lifting bag, air balloon, Qingdao Florescence make the best airbags. For the marine airbags we export to Asia, America and Africa for shipyard use. we can make the 2.8m diameter airbags, only less factoy in China can do such large airbags. Airbags we most use is 4 6 8 layers. this is the most regular layers. Our diameter from 0.6m to 2.8m, effective length from 5m to 24m.

We Qingdao Florescence can offer the on site services at your shipyard, give the best desgin of the marine airbags.

We can offer 24*7 hours services.

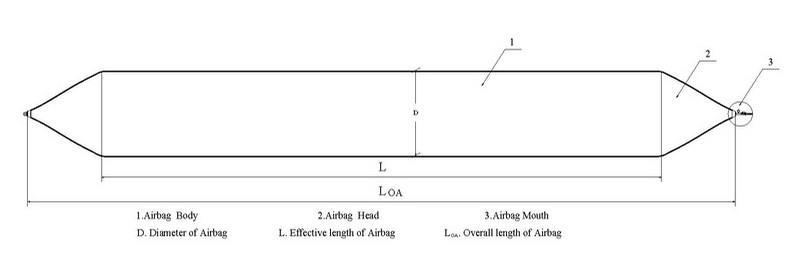

Structure of marine airbag
1. Airbag body
The airbag body is made by natural rubber and strength fiber material through vulcanization progressing
2. Terminal iron part
The terminal iron part is made of cast iron, it is combined closely with the airbag body, one end is for pulling when you move it, and the other end if for charging and discharging the air.

Marine Docking Launching Lifting Airbag Quality Control

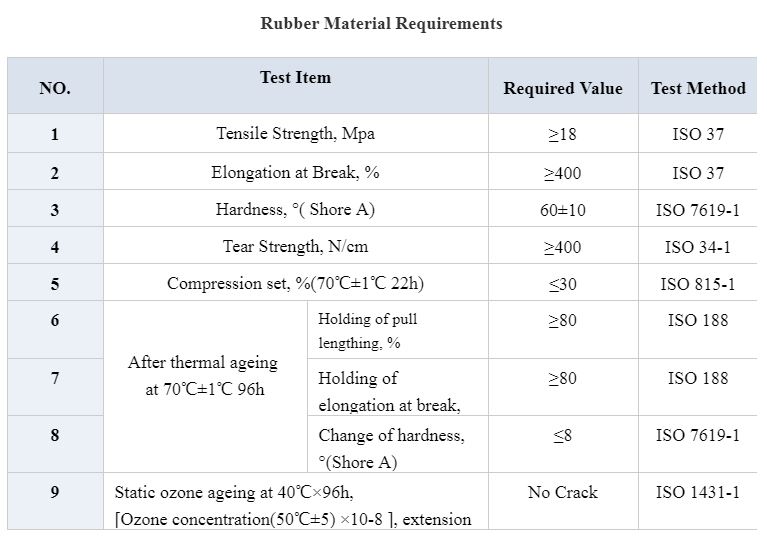

Prior to the air bag production, the outer and inner rubber layers should be tested according to the criteria in the following table. The testing method comply with the international standard listed in the table below.
While only one satisfactory sample per batch is required for test NO.1 to NO.3., all others must be tested for test NO.4 to NO. 9 annually. If the first sample fails, two additional samples should be tested. If the additional samples pass the test, the materials will be deemed to have passed the test. Otherwise, the materials will be deemed to have failed the test and another batch shall be selected.
