Floating Pneumatic Yokohama Fender

Name: China Floating Pneumatic Yokohama Fender Suppliers and Manufacturers - Factory Price Floating Pneumatic Yokohama Fender - Florescence
Brand: Florescence
SKU: 99092499

Sling pneumatic fender without net, whose basic body construction of outer rubber layers, synthetic-cord-reinforced rubber layers and inner rubber layers, are kind of cylindrical airbags with hemisphenical heads at both ends. All of these are vulcanized together, and then compress air inside to float on the water.

Description of Floating pneumatic yokohama fender.

Color	Black
Size	Normal size or customize according to requirements
Material	Natural rubber and fabric cord
Chain	Hot Dip Galvanised or stainless steel
Initial pressure	0.05Mpa(50kPa)~0.08Mpa(80kPa)
Life span	More than 10 years
Stocks	Available
Certification	CCS,BV,ABS,ISO9001
Standard	ISO17357
Payment terms	T/T or L/C
Delivery time	Depend on the quantity,usually within one week.
Warranty period	3 years best after-sales service

Marine rubber fender also called pneumatic rubber fender, rubber fender, Yokohama fender, Yokohama floating pneumatic rubber fender,pneumatic rubber jetty, inflatable rubber ball,rubber balloon etc.Made by natural rubber and rubberized cord fabric. Today is a leading anti-collision device for marine application in the wordwide.Marine fenders has become an ideal ship protection medium against dollision among ship-to-ship (STS),ship-to-quay(STQ) and ship-to-berthing(STB),they are widely used for large tankers,vessels,docks, harbor wharfs and ocean platforms.It is easy and quick to deploy, available in many dimensions to suit clearance requirements and different size of ships.to protect the ships and docks.

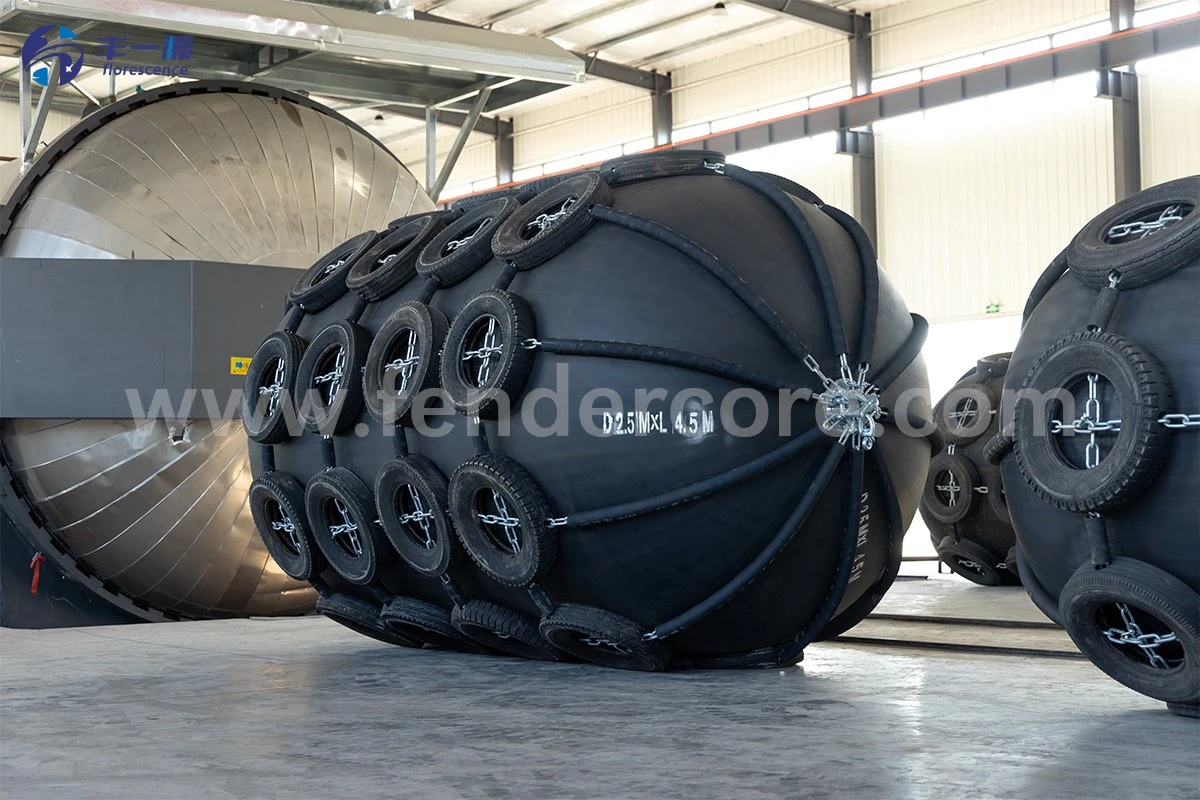

product-1200-800

Why choose Florescence Floating Pneumatic Yokohama Fender?

1.Learder since 1992, with more than 20 years produce experience;
2.Best quality with 3 years guarantee period;
3.Comply with ISO17357:2002;
4.Certificates BV,CCS,ABS,GL etc available;
5.Customized different dimention according to requirements;
6.Lifespan more than 10 years;
7.Different dimension stocks, the delivery time can be within 3 days;
8.Can be deflated in transit.
9.Long time good after-sale service;

10.Professional engineer recommend suitable dimension and quantity of rubber fender.

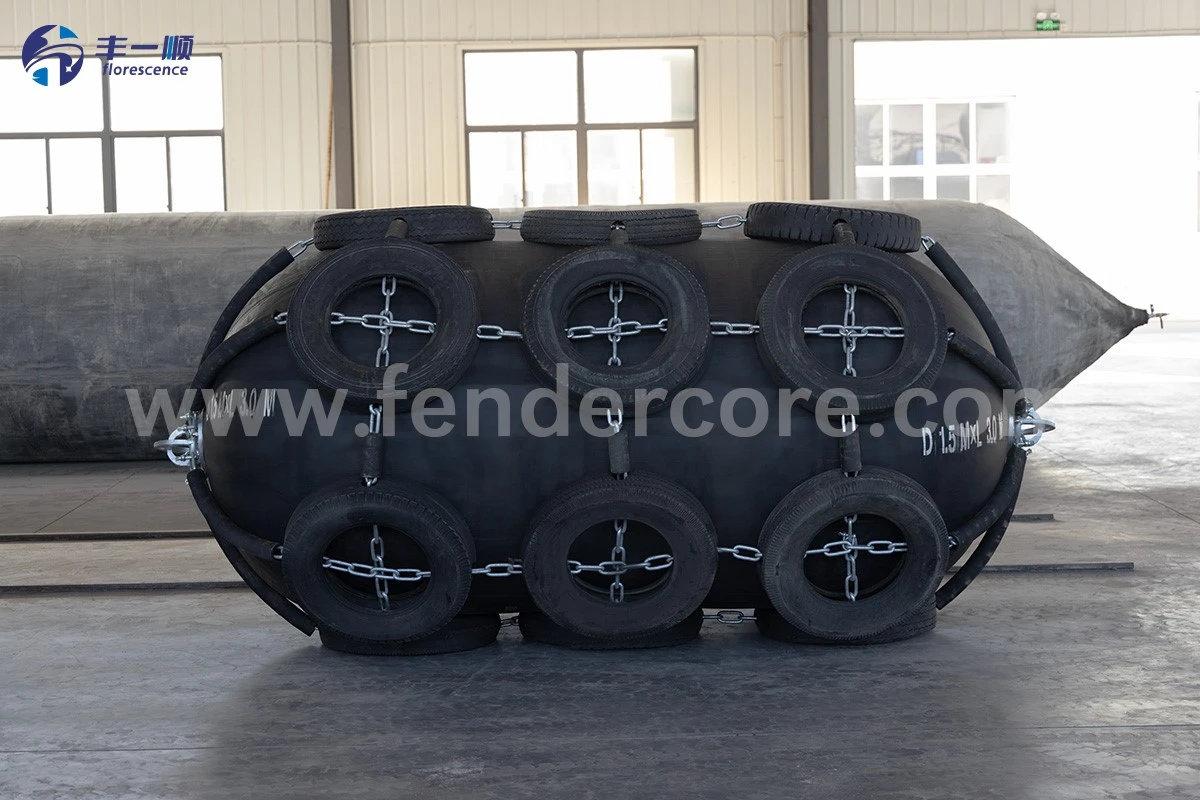

product-1200-800

Pneumatic rubber Fenders made by an outer rubber, reinforcement synthetic-tyre-cord layer, and inner rubber, then shaping curing.

1.The outer rubbers are used to protect the cord layers and inner rubber from abrasion and other external forces. This rubber compound have sufficient tensile and tear resistance strength to withstand anticipated weather conditions and severe usage.
2.The reinforcement synthetic-tyre-cord layer strong enough to maintain the internal air pressure of the fender.
3.The inner rubber layer seals the pressurized air inside the fender.

product-1200-800

Specification D*L(mm)	Initial pneumatic pressure 50 KPa			Initial pneumatic pressure 80 KPa			Applicable ships tonnage (T)
Specification D*L(mm)	Body Weight (kg)	R (KN)	GEA (KJ)	Body Weight (kg)	R (KN)	GEA (KJ)	Applicable ships tonnage (T)
500×1000	25	64	6	25	83	8	50
600×1000	32	74	8	32	96	11	50
1000×1500	80	182	32	80	235	44	100
1000×2000	100	257	45	125	335	63	200
1200×2000	120	297	63	165	386	86	300-500
1350×2500	165	427	102	226	554	140	300-500
1500×3000	315	597	153	370	751	211	1000
1700×3000	405	639	191	436	830	263	1000
2000×3500	590	875	308	632	1138	424	3000
2500×4000	1050	1381	663	1110	1815	925	10000
2500×5500	1333	2019	943	1410	2653	1317	10000
3000×5000	1880	2104	1210	2155	2709	1571	1000above
3000×6000	2160	2583	1485	2470	3292	1888	10000above
3300×4500	2020	1884	1775	2300	2476	1640	10000above
