Super Cone Fender Cone Fender is the latest generation of “Cell Fender” combining excellent energy capacity with low reaction force to give the most efficient performance of any fender type. The conical shape keeps the fender body stable under all combinations of axial, shear and angular...

Cone Fender is the latest generation of "Cell Fender" combining excellent energy capacity with low reaction force to give the most efficient performance of any fender type. The conical shape keeps the fender body stable under all combinations of axial, shear and angular loading. Hence, it is ideal for berths where large berthing angles and heavy impacts need to be accommodated. All Cone Fenders are single piece moldings so they are robust, long lasting and easy to install. In most projects, the frontal frame is generally used in conjunction with Cone Fender System. Generally the frontal frame is including Steel Panel and UHMW-PE facing pad. Besides that they have also been used with great success behind fender piles, in Parallel Motion systems and for numerous other applications.

Model	H	h	ΦU	ΦD	ΦS	ΦP	n	n-Ma	n-Φd
FLCO 300H	300	13.5	255	450	195	405	4	M16	20
FLCO 350H	350	25	300	570	235	510	4	M20	25
FLCO 400H	400	18	340	600	260	540	4	M20	25
FLCO 500H	500	25	425	750	325	675	4	M24	30
FLCO 600H	600	27	510	900	390	810	6	M24	30
FLCO 700H	700	32	585	1050	455	945	6	M30	38
FLCO 800H	800	36	680	1200	520	1080	6	M36	44
FLCO 900H	900	41	765	1350	585	1215	6	M36	44
FLCO 1000H	1000	45	850	1500	650	1350	6	M42	56
FLCO 1050H	1050	55	1030	1680	900	1530	6	M36	44
FLCO 1100H	1100	50	935	1650	715	1485	6	M42	50
FLCO 1150H	1150	52	998	1725	750	1550	6	M42	56
FLCO 1200H	1200	54	1020	1800	780	1620	8	M42	50
FLCO 1300H	1300	59	1105	1950	845	1755	8	M48	60
FLCO 1400H	1400	66	1190	2100	930	1890	8	M48	60
FLCO 1600H	1600	72	1360	2400	1060	2160	8	M48	70
FLCO 1800H	1800	78	1530	2880	1190	2430	10	M56	76
FLCO 2000H	2000	80	1900	3200	1540	2920	10	M56	76

The sizes listed above are partial and only for reference, other sizes besides the above can be customized. Contact us for specific model capacities and safety factors.

Installation Details

Fender & Accesssories

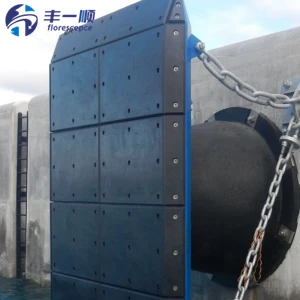

Dock Supper Cone Fender

1. Super cone fender
2. Steel front panel
3. UHMW-PE facing panel
4. Chain system
5. Anchors

6. Pre-built parts

P.S. We provide customized services not only for fender specification, but also for project design, installation and specified accessories to meet various requirements of different customers.

Application

Tanker Berths
Container Terminals
RoRo & Cruise Berths
Bulk Terminals
Dolphins & Monopile

FAQ

Q: Are you a Manufacturer?
A: Yes, of course. We are one of the biggest rubber fender manufacturers and marine bollard manufactures with many projects all over the world following PIANC 2002. You will be warmly welcomed tovisit our factory any time.
Q: How Can We Get The Quotation In Short Time?
A: Please Send Us The Dimension With Detailed Requirements, Design With Picture, Quantity And Port Of Discharge For Quickest Pricing.
Q: Can You Send Us The Samples? Any Cost For Those Samples?
A: Yes, If We Have The Similar Existing Sample, We Will Send You And You Will Only Afford The Freight Cost; If We Have To Make The New Sample, You Will Afford The Small Competitive Sample Cost
Q: Can You Help Us With The Design?
A: Yes, We Have Professional Designers To Assist Your Design.
Q: What's Your Production Time For A New Sample?
A: It Will Take Within 7days To Make A New Sample.
Q: What's Your Standard Production Time For A Big Order?
A: Usually It Will Take About 10-30days For Mass Production
Q: What's Your Usual Way Of Shipping For Samples?
A: Normally Samples Will Be Shipped By Express Such As DHL, Fedex And UPS And The Shipping Time ls About 3-5days.
Q: How Can You Control The Quality?
A: We Have QC/QA To Proceed With The Order Requirements And International Standard. And We
Will Send You The Pictures During The Production And After Production.
Q: How Can I Track The Delivery Of The Order
A: We Will Send You The Tracking Number For Tracking Online.
