Super Cone Fender For Dock

Super Cone fender for dock Description of cone rubber fender Cone fender is the most design of rubber fender build upon the technology of cell fenders and recommended for all types of applications, including high tidal variation sites. They are known for their optimum performance, better efficiency,...

product-750-615

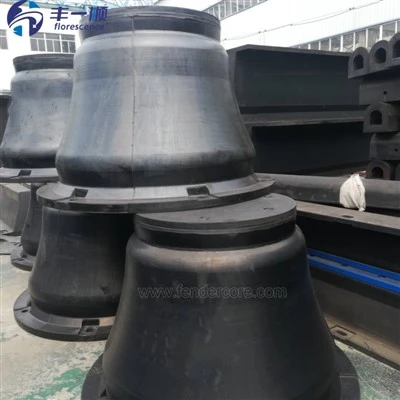

Super Cone fender for dock

Cone fender is the most design of rubber fender build upon the technology of cell fenders and recommended for all types of applications, including high tidal variation sites. They are known for their optimum performance, better efficiency, higher stability and performance under shear and compression loads. Its unique cone shape structure gave its name and keeps it stable even at higher angle of impact or compression. It also leads to have increased absorption, better performance and longer service life. Besides, this advanced feature of the lesser height of fenders improves the material handling capabilities of deck / vessel cranes, which reduces the overall cost of the project.

Arch Marine Fender With Fittings

1568627529912276_

Specification of marine cone fenders

Type	Specification
Type	H	ΦU	ΦS	ΦP	ΦD	Holes	n-Ma	n-Φd	h
FCO500	500	425	325	675	750	4	M24	30	25
FCO600	600	510	390	810	900	6	M24	30	27
FCO700	700	595	455	945	1050	6	M30	38	32
FCO800	800	680	520	1080	1200	6	M36	44	36
FCO900	900	765	585	1215	1350	6	M36	44	41
FCO1000	1000	850	650	1350	1500	6	M42	56	45
FCO1100	1100	935	715	1485	1650	6	M42	50	50
FCO1150	1150	998	750	1550	1725	6	M42	56	52
FCO1200	1200	1020	780	1620	1800	8	M42	50	54
FCO1300	1300	1105	845	1755	1950	8	M48	60	59
FCO1400	1400	1190	930	1890	2100	8	M48	60	66
FCO1600	1600	1360	1060	2160	2400	8	M48	70	72
FCO1800	1800	1530	1190	2430	2700	10	M56	76	78

Product name	Cone rubber fender
Material	Natural rubber
Size range	Height: 500-1800mm
Accessories	Bolt, washer, nut, frontal panel, UHMW-PE pad, etc
Application	Container Terminals, RoRo&Cruise Berths, Dolphins & Monopiles, General Cargo Facilities, Parallel Motion Fenders,Many other applications
Service life	6-8 years
Certificate	ISO, BV, CCS, RS, etc

Key attributes of marine cone fenders
1. Highly efficient even in severe angular berthing applications
2. High energy absorption with relatively low reaction force.
3. Excellent multi-directional angular performance.
4. High durability as the internal stress are dispersed throughout the fender body.
5. High allowable static load of fenders
6. No performance loss even at large berthing angles
7. Extreme stability and resistance to shear
8. Wide choice of rubber compounds

QQ20210622133418_ QQ20210622133415_

Other types marine fender:

1. D rubber fender

2. Cylindrical rubber fender

3. Foam filled fender

4. Arch rubber fender

5. Cell rubber fender

6. Tugboat rubber fender

7. Pneumatic rubber fender

8. Square rubber fender

FAQ

1. who are we?
We are based in Shangdong, China and specialize in marine fender and airbag since 1992.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Pneumatic Fender, Ship Launching Airbags, Marine Airbags, Dock Fender, Rubber Fender

4. why should you buy from us not from other suppliers?
1.Over 30 years extensive experience, Navy supplier 2.Products are certificated by CCS, BV, ABS, etc. 3. Strict control of quality
inspection and raw materials. 4.Possibilities for fast delivery from stock or with short lead times.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,CPT,DDP,DDU,Express Delivery,DAF;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
