Inflatable Floating Marine Rubber Air Bag

Name: China Inflatable Floating Marine Rubber Air Bag Suppliers and Manufacturers - Factory Price Inflatable Floating Marine Rubber Air Bag - Florescence
Brand: Florescence
SKU: 68609191

inflatable Airbag Rubber Air Bag

ISO9001:2015 factory made Inflatable Floating Marine Rubber Air Bag

----Factory since 1992

photobank 3

Major Strengths of Florescence Airbag---Marine Rubber Air Bag:

1.High safety level: equipped with a reliable safety valve, our airbags can stand the maximum pressure up to 4 times that of the operating pressure.

2.Good air tightness: pressure decreases less than 10% for a period of 24 hours.

3.Long lifespan: it is guaranteed that our airbags can sustain their designed operating pressure for 3 years.

4.A complete set of solutions is available.

photobank 4

Performance Table of Rubber Air Bag:

Diameter	Rated Pressure MPa	Explosion Pressure Mpa	Working height Meter	Guaranteed bearing capacity per unit length
				ton/m
D=1.0m (D=3.28 ft)	0.80	≥3.6	0.40	75.36
			0.50	62.80
			0.60	50.24
D=1.2m (D=3.94 ft)	0.70	≥3.15	0.48	79.13
			0.60	65.94
			0.72	52.75
D=1.5m (D=4.92 ft)	0.55	≥2.50	0.60	77.72
			0.75	64.76
			0.90	51.81
D=1.8m (D=5.90 ft)	0.45	≥2.10	0.72	76.30
			0.90	63.59
			1.08	50.87
D=2.0m (D=6.56 ft)	0.40	≥1.80	0.80	75.36
			1.00	62.80
			1.20	50.24
D=2.5m (D=8.20 ft)	0.33	≥1.49	1.00	77.72
			1.25	64.76
			1.50	51.81

Marine Rubber Air Bag Storage:
1.When marine rubber airbag can not be used for a long time, it should be drained, washed, dried, filled with talcum powder, and the outer surface should be coated with talcum powder. Inflatable floating marine rubber airbags should be stored in a dry, ventilated room and protected from light. Ships that emit inflatable airbag rubber bladders should be stored in a relaxed state without tension, compression or other deformation.
2.Rubber Air Bag should be kept away from any heat source.
3.Rubber Air Bag should be protected from acids,alkalis.oils or organic solvents.

Product name:	Inflatable Floating Marine Rubber Air Bag
Material:	Natural rubber
Origin place:	Qingdao
Lifespan:	Over 6-8 years without misuse

photobank 9

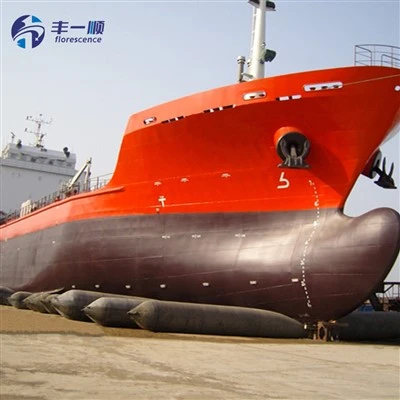

FAQ about Ship Launching Airbags:

Q: Are your marine airbags suitable for both launching and docking operations?
A: Absolutely. Our high-performance airbags are designed for multiple marine applications including vessel launching, docking, lifting, relocation, and salvage operations.

Q: What advantages do your airbags offer compared to traditional slipways?
A: Our solution provides three key benefits:

Cost Efficiency - Significantly more affordable than slipways with reusable design that reduces both labor and material costs

Operational Flexibility - Portable system enables faster deployment and greater adaptability

Vessel Protection - Softer contact surface prevents hull damage during operations

Q: We need assistance selecting the proper airbag size for our vessels. Can you help?
A: Certainly. With over two decades of industry experience, our technical team can recommend optimal sizing based on your vessel specifications. Please share your ship details for customized recommendations.

Q: As first-time users, will we receive operational guidance?
A: Yes, we provide comprehensive support including:

Detailed instruction manuals

Step-by-step video tutorials

Optional on-site training by our certified technicians

Q: What is your minimum order quantity?
A: We accommodate all project scales with a flexible MOQ of just 1 unit.
