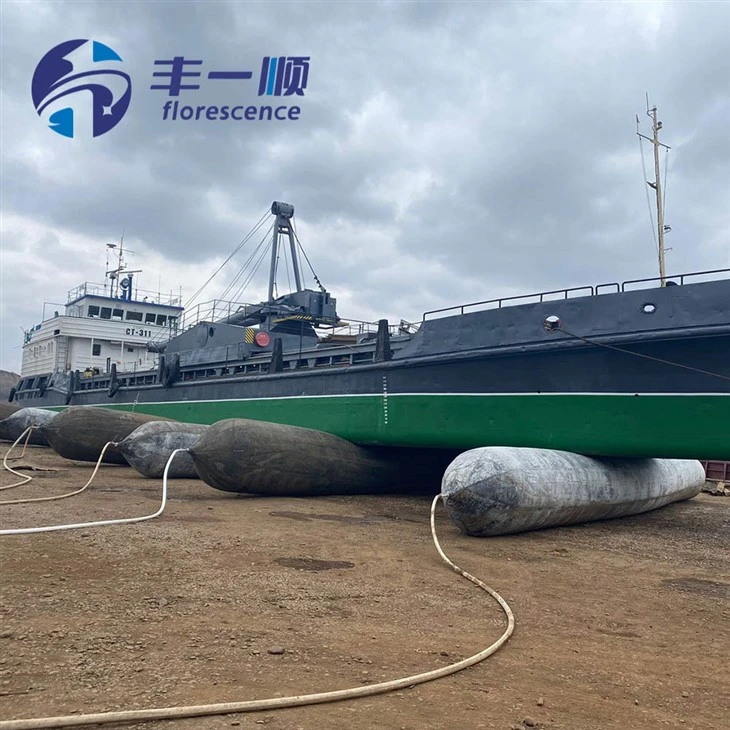

Boat Lifting Launching Docking Ship Airbags

Introduction of launching rubber airbag 1) Outer Rubber Layer The outer rubber layer is protecting outside of airbag under layers to prevent abrasion and other external forces. It has enough tensile and tearing strength, can use at any condition and places. 2) Inner Rubber Layer The inner rubber layer is to make sure no air leakage from airbag inside. 3) Synthetic-Tire-Cord Layer as Reinforcement The reinforcement cord layers, which are made of synthetic-tire-cord commonly used in tires, are arranged at ideal angles to hold the internal pressure and distribute stress evenly. So they can provide strong efficient reinforcement.

Boat Lifting Launching Docking Ship Airbags

Introduction of boat lifting launching docking ship airbags

Marine Rubber Airbag is China independent intellectual property rights of innovative products, the products are mainly applied to ship launching and landing, weight lifting, handling, installation of underwater buoyancy aid etc. Nowadays, Marine rubber airbags are widely used in the world. The Products are less limited by space, no large mechanical equipment, can shorten the working period and save the unnecessary cost. Through years of development practice, marine rubber airbag is become more safety, effective and green environmental protection.

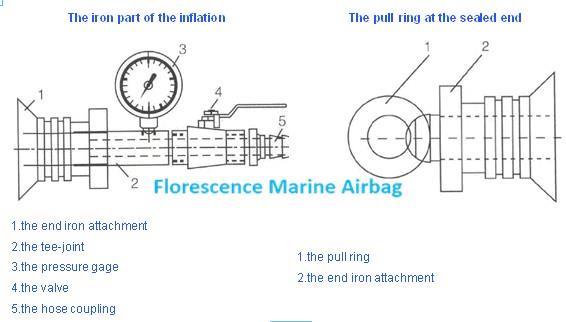

201810241433326802470

Specification of rubber airbag

Classification	Ordinary Airbag		with 3, 4 or 5 layers of cord fabric
	High Bearing Airbag		with 6, 7 or 8 layers of cord fabric
	Super-bearing Airbag		with 9, 10 layers of cord fabric or as your request
Diameter(m)	0.6m to 2.5m or customized diameter
Valid Length(m)	5m to 24m or others
Total Length(m)	7m to 25m or as your requests
Lifting Capacity	About 3T to 60T buoyancy capacity
Effective Length(m)	Marine Salvage Airbags Buoyancy(tons)
Effective Length(m)	D=1m	D=1.2m	D=1.5m	D=1.8m	D=2m
5	3.93	5.65	8.84	12.72	15.71
6	4.71	6.79	10.6	15.27	18.85
7	5.5	7.92	12.37	17.81	21.99
8	6.28	9.05	14.14	20.36	25.13
9	7.07	10.18	15.9	22.9	28.27
10	7.85	11.31	17.67	25.45	31.42
11	8.64	12.44	19.44	27.99	34.56
12	9.42	13.57	21.21	30.54	37.7
13	10.21	14.7	22.97	33.08	40.84
14	11	15.83	24.74	35.63	43.98
15	11.78	16.96	26.51	38.17	47.12
16	12.57	18.1	28.27	40.72	50.27
17	13.35	19.23	30.04	43.26	53.41
18	14.14	20.36	31.81	45.8	56.55

Rubber Material Requirements

NO.	Test Item		Required Value	Test Method
1	Tensile Strength, Mpa		≥18	ISO 37
2	Elongation at Break, %		≥400	ISO 37
3	Hardness, °( Shore A)		60±10	ISO 7619-1
4	Tear Strength, N/cm		≥400	ISO 34-1
5	Compression set, %(70℃±1℃ 22h)		≤30	ISO 815-1
6	After thermal ageing at 70℃±1℃ 96h	Holding of pull lengthing, %	≥80	ISO 188
7		Holding of elongation at break, %	≥80	ISO 188
8		Change of hardness, °(Shore A)	≤8	ISO 7619-1
9	Static ozone ageing at 40℃×96h, [Ozone concentration(50℃±5) ×10-8 ], extension 20%		No Crack

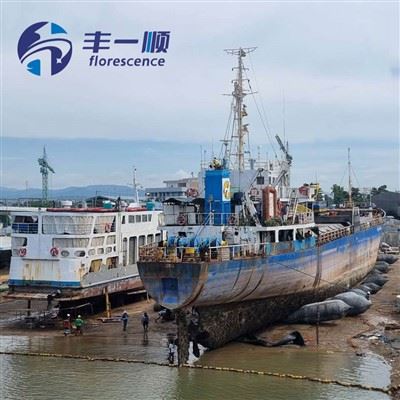

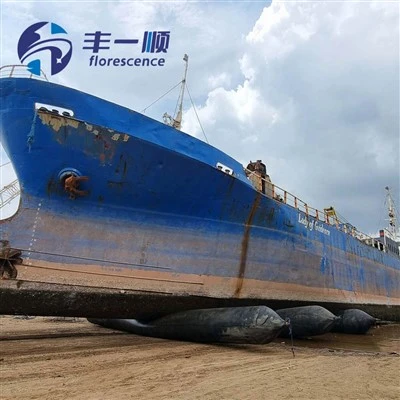

The process of ship launching by airbags

1.Preparing for launching ramp way and all necessary equipments.

Select and check suitable airbag size and quantity for ship, tide up the launching ramp way, fix the ship by winch and anchors.

2.Taking out all support blocks under stern and middle one by one, and put in airbags.

3.Taking out all support blocks under the prow. Open winch and release the cable, let the ship launch to water.

4.Checking all the deckhouse after launching, retrieving all airbags at meantime.

微信截图_20190409152742_副本

Airbag usage safety precaution:

1.Strictly control the operating pressure

2.The slipway should be ground or cement concrete based on the tonnage of different ships.

3.Make sure no objects on the ramp way and make sure the ramp way is smooth and clean during operation

4.Avoid distortion in the length direction during rolling and avoid overweight load after air charging.

Marine Vessel Launching Airbags

boat-lifting-launching-rubber-airbag27494139033
