Rubber Arch Fender

Name: China Rubber Arch Fender Suppliers and Manufacturers - Factory Price Rubber Arch Fender - Florescence
Brand: FLORESCENCE
SKU: 84304456

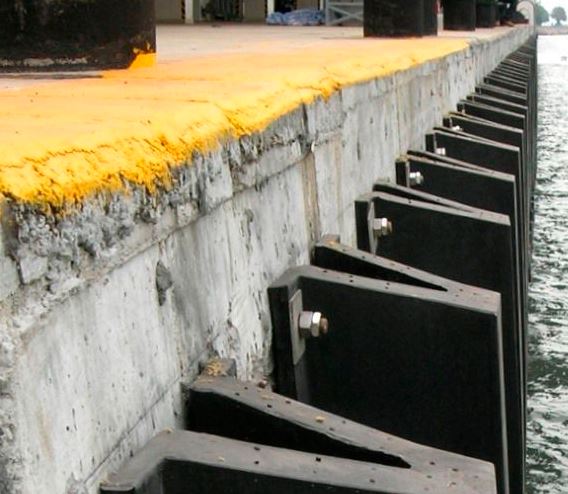

Our Rubber Arch fenders are a single piece rubber moulding and can be manufactured from different rubber compounds, different compounds offering different characteristics. The choice of compound is made based on the design specification and the specific requirements of the application. They are manufactured using a twin leg system and can be installed horizontally or vertically on a dock wall. Rubber Arch Fenders can be manufactured with a low friction UHMW-Polyethylene face when required, either bolted of bonded.

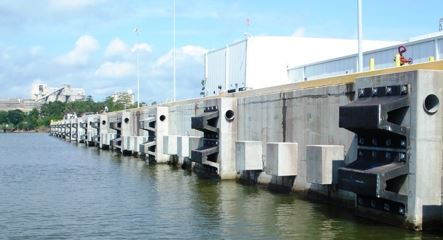

Arch Fenders are simple and rugged marine fender systems, providing reliable and trouble-free service for a wide variety of berths even under the most severe conditions. The SAN-fender is a traditional rubber-faced unit whilst the SANP-fender can be fitted with either UHMW-PE face pads or connected to a steel panel.

Corner Arch fenders are available in three standard sizes and provide a simple, easily installed solution to prevent berth corners from damage by smaller vessels.

In other word, there are two types Arch Fenders, FDA-A and JDA-B.The JDA-

1 Arch Fender with Steel Panel and Facing Pad

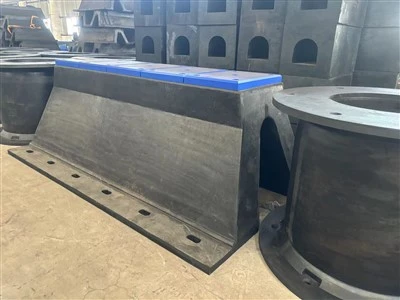

2 Arch Fender with UHMW-PE Facing Pad
The 2nd type has two fixing arrangements to suit either UHMW-PE low-friction face pads or for attaching to a steel fender panel or pile. A major benefit of the 2nd design is strength under static and dynamic shear loads which allows large panels to be supported without chains. For special or unusual applications, 1st type and 2nd type fenders can be made in intermediate compounds, non-standard lengths, with special end profiles and different bolting patterns. Please consult Florescence for further details.

Applications

RoRo berths

General cargo

Workboat harbours

Barge and tug berths

Features

Simple one-piece design

Strong and hard wearing

Excellent shear performance

Wide range of standard sizes

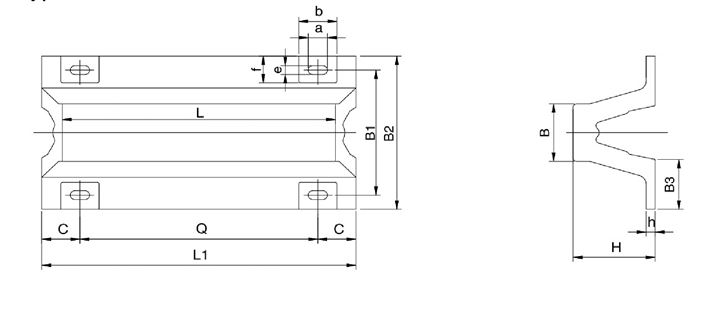

Sepcification	Diamension(mm)
Sepcification	H	L	L1	C	Q	n	B	B1	B2	B3	h	a	b	e	f
FLA 150×1000	150	1000	1075	110	855	2	98	240	300	96	22.5	50	95 I	25	55
FLA 150 ×1500	150	1500	1575	112. 5	675	3	98	240	300	96	22. 5	50	95	25	55
FLA 150×2000	150	2000	2075	215	620	4	98	240	300	96	22.5	50	95	25	55
FLA 150 ×2500	150	2500	2575	220	785	4	98	240	300	96	22. 5	50	95	25	55
FLA 150×3000	150	3000	3075	215	715	5	98	240	300	96	22.5	50	95	25	55
FLA 150 ×3500	150	3500	3575	220	671	6	98	240	300	96	22.5	50	95	25	55
FLA 200 ×1000	200	1000	1100	120	860	1	145	320	400	128	30	58	105	29	75
FLA 200 ×1500	200	1500	1600	120	680	2	145	320	400	128	30	58	105	29	75
FLA 200 ×2000	200	2000	2100	120	620	3	145	320	400	128	30	58	105	29	75
FLA 200 ×2500	200	2500	2600	122. 5	785	3	145	320	400	128	30	58	105	29	75
FLA 200 ×3000	200	3000	3100	120	715	4	145	320	400	128	30	58	105	29	75
FLA 200 ×3500	200	3500	3600	120	672	5	145	320	400	128	30	58	105	29	75
FLA 250 ×1000	250	1000	1125	130	865	1	164	410	500	160	30	64	125	32	90
FLA 250 ×1500	250	1500	1625	132. 5	680	2	164	410	500	160	30	64	125	32	90
FLA 250 ×2000	250	2000	2125	132.5	620	3	164	410	500	160	30	64	125	32	90
FLA 250 ×2500	250	2500	2625	127. 5	790	3	164	410	500	160	30	64	125	32	90
FLA 250 ×3000	250	3000	3125	132.5	715	4	164	410	500	160	30	64	125	32	90
FLA 250 ×3500	250	3500	3625	130	673	5	164	410	500	160	30	64	125	32	90
FLA 300 ×1000	300	1000	1150	140	870	1	225	490	600	195	33	70	140	35	105
FLA 300 ×1500	300	1500	1650	140	685	2	225	490	600	195	33	70	140	35	105
FLA 300 ×2000	300	2000	2150	137.5	625	3	225	490	600	195	33	70	140	35	105
FLA 300 ×2500	300	2500	2650	140	790	3	225	490	600	195	33	70	140	35	105
FLA 300 ×3000	300	3000	3150	145	715	4	225	490	600	195	33	70	140	35	105
FLA 300 ×3500	300	3500	3650	140	674	5	225	490	600	195	33	70	140	35	105
FLA 400 ×1000	400	1000	1200	150	900	1	300	670	800	260	40	82	165	41	120
FLA 400 ×1500	400	1500	1700	150	700	2	300	670	800	260	40	82	165	41	120
FLA 400 ×2000	400	2000	2200	147.5	635	3	300	670	800	260	40	82	165	41	120
FLA 400 ×2500	400	2500	2700	150	800	3	300	670	800	260	40	82	165	41	120
FLA 400 ×3000	400	3000	3200	150	725	4	300	670	800	260	40	82	165	41	120
FLA 400 ×3500	400	3500	3700	150	680	5	300	670	800	260	40	82	165	41	120
FLA 500 ×1000	500	1000	1250	160	930	1	375	840	1000	325	45	94	180	47	140
FLA 500 ×1500	500	1500	1750	160	715	2	375	840	1000	325	45	94	180	47	140
FLA 500 ×2000	500	2000	2250	157.5	645	3	375	840	1000	325	45	94	180	47	140
FLA 500 ×2500	500	2500	2750	160	810	3	375	840	1000	325	45	94	180	47	140
FLA 500 ×3000	500	3000	3250	165	730	4	375	840	1000	325	45	94	180	47	140
FLA 500 ×3500	500	3500	3750	160	686	5	375	840	1000	325	45	94	180	47	140
FLA 600 ×1000	600	1000	1300	170	960	1	450	1010	1200	390	54	100	195	50	160
FLA 600 ×1500	600	1500	1800	170	730	2	450	1010	1200	390	54	100	195	50	160
FLA 600 ×2000	600	2000	2300	167.5	655	3	450	1010	1200	390	54	100	195	50	160
FLA 600 ×2500	600	2500	3800	170	820	3	450	1010	1200	390	54	100	195	50	160
FLA 600 ×3000	600	3000	3300	170	740	4	450	1010	1200	390	54	100	195	50	160
FLA 600 ×3500	600	3500	3800	170	692	5	450	1010	1200	390	54	100	195	50	160
FLA 800 ×1000	800	1000	1400	180	1040	1	600	1340	1600	520	72	136	270	68	260
FLA 800 ×1500	800	1500	1900	180	770	2	600	1340	1600	520	72	136	270	68	260
FLA 800 ×2000	800	2000	2400	180	680	3	600	1340	1600	520	72	136	270	68	260
FLA 800 ×2500	800	2500	2900	182. 5	845	3	600	1340	1600	520	72	136	270	68	260
FLA 800 ×3000	800	3000	3400	180	760	4	600	1340	1600	520	72	136	270	68	260
FLA 1000 ×1000	1000	1000	1500	200	1100	1	750	1680	2000	650	90	136	290	68	300
FLA 1000 ×1500	1000	1500	2000	200	800	2	750	1680	2000	650	90	136	290	68	300
FLA 1000 ×2000	1000	2000	2500	200	700	3	750	1680	2000	650	90	136	290	68	300
NOTE: other non-series specification can be made according to customers' request
