Pneumatic Floating Fenders

Name: China Pneumatic Floating Fenders Suppliers and Manufacturers - Factory Price Pneumatic Floating Fenders - Florescence
Brand: Florescence
SKU: 109060765

Florescence Yokohama Pneumatic Rubber Fender The durability and life expectancy of Pneumatic floating fenders provides owners with an outstanding return on investment. Supplied by Florescence, to protect ships and mooring facilities, which have been used effectively for worldwide ship-to-quay...

Florescence Pneumatic Floating Fenders

image001_副本

image003_副本

The durability and life expectancy of Pneumatic Floating Fenders provides owners with an outstanding return on investment.

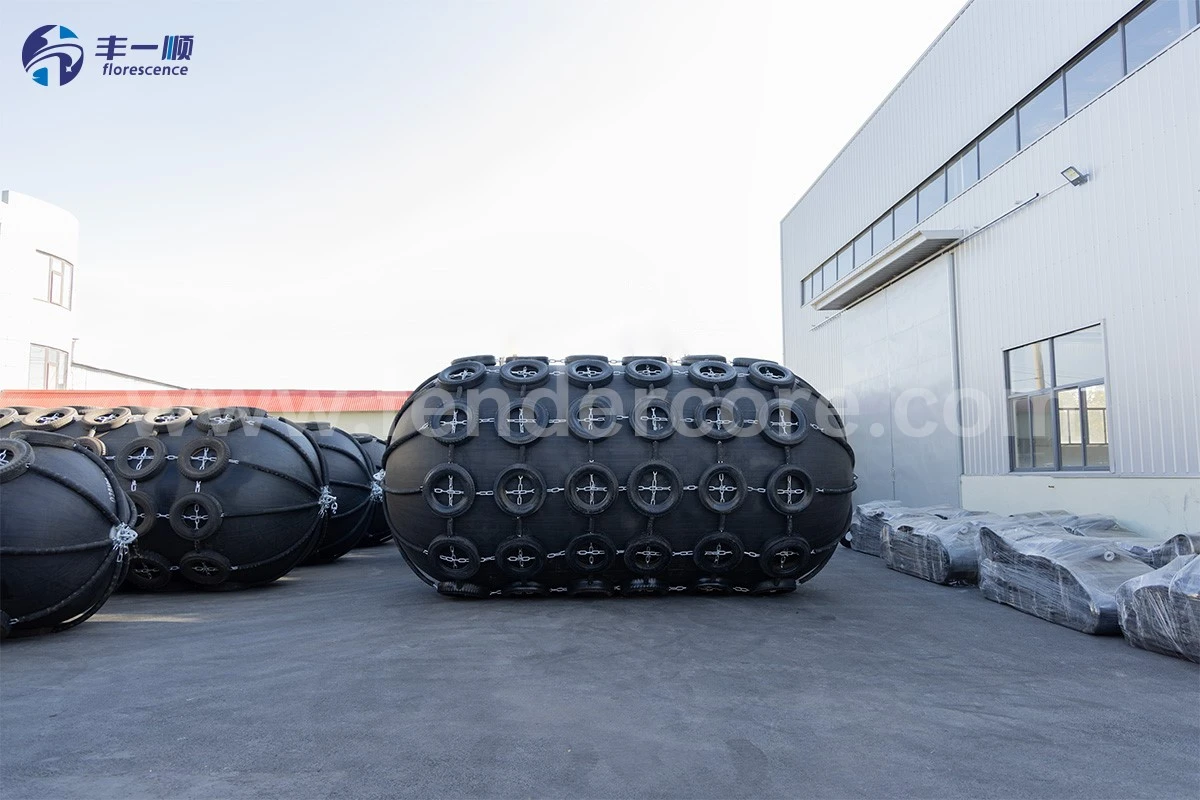

product-1200-800

Supplied by Florescence, to protect ships and mooring facilities, which have been used effectively for worldwide ship-to-quay and Ship-to-Ship applications since 1992, are proven to perform safely even when excess load is applied to them.

Pneumatic fender performance

Reliant on the compressive elasticity of air, Yokohama pneumatic fenders show no deterioration or variation in performance due to fatigue or extremely even -50°C and below temperatures. So no need for owners to make regular replacements.

Installation is easy and cheap, as the fender is floated by its own weight in the water. As such, it can be moored easily by rope or chain, and can be transferred to another mooring point easily.

Whilst some manufacturers of pneumatic fenders claim compliance with the internationally recognised ISO 17357 manufacture, testing and performance standards, despite failing to meet certain key criteria, Yokohama affords customers complete confidence by demonstrating full compliance with PIANC 2002.

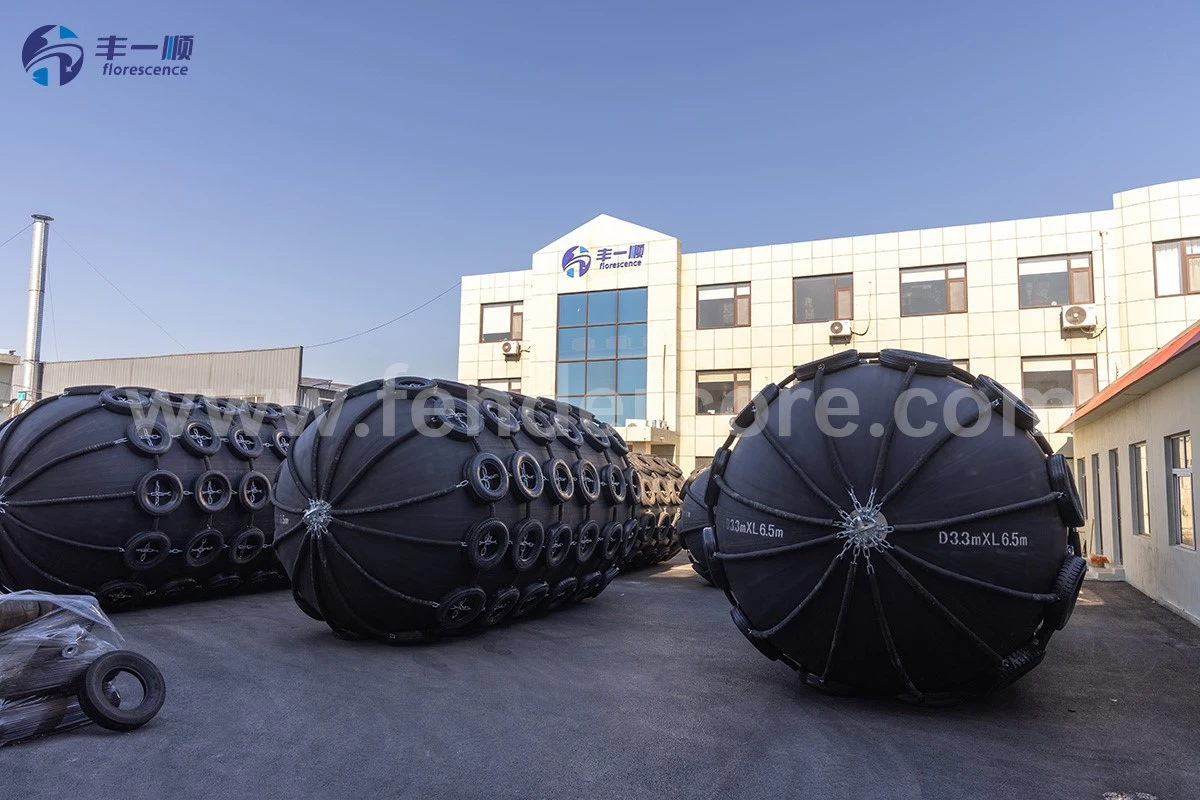

product-1200-800

Features of Yokohama floating rubber fenders:

Fully compliant with ISO 17357 and PIANC 2014 standards

Comprehensively tested for material and hydrostatic pressure irregularities

Correctly evaluated for angular and durability performance

Clearly marked with all relevant identification

Fitted with radio frequency identification (RFID) as standard

Complete with up-to-date certification

Available in a variety of sizes

Constructed with an inner rubber layer, reinforcing cord layers and outer rubber layer

Thick outer skin supersedes that of a normal surface fender

Fitted safety valve for fenders of 2.5m diameter upwards

Compatible with Fendercare Marine's chain and tyre fender nets

product-1200-800

Nominal size diameter x length mm x mm	Initial internal pressure kPa	Guaranteed energy absorption (GEA) E	Reaction force at GEA R	Hull pressure at GEA P	Safety valve setting pressure kPa	Testing pressure kPa	Approx. fender body weight kg	Approx. weight of net kg	Weight of sling type (type II) kg
500 x 1000	50	6	64	132	-	200	22	160	32
700 x 1500	50	17	137	135	-	200	45	185	55
1000 x 1500	50	32	182	122	-	200	73	250	98
1000 x 2000	50	45	257	132	-	200	88	385	113
1200 x 2000	50	63	297	126	-	200	131	430	156
1350 x 2500	50	102	427	130	-	200	200	675	240
1500 x 3000	50	153	579	132	-	200	250	795	290
1700 x 3000	50	191	639	128	-	200	290	830	330
2000 x 3500	50	308	875	128	-	200	405	1165	465
2000 x 4500	50	418	1188	137	-	200	480	1700	540
2500 x 4000	50	663	1381	137	175	250	902	1745	1080
2500 x 5500	50	943	2019	148	175	250	1090	2765	1320
3300 x 4500	50	1175	1884	130	175	250	1460	2650	1840
3300 x 6500	50	1814	3015	146	175	250	1870	3840	2250
3300 x 10,600	50	3067	5257	158	175	250	2560	6755	3060
4500 x 9000	50	4752	5747	146	175	250	3940	7365	-
4500 x 12,000	50	6473	7984	158	175	250	4790	9875	-
