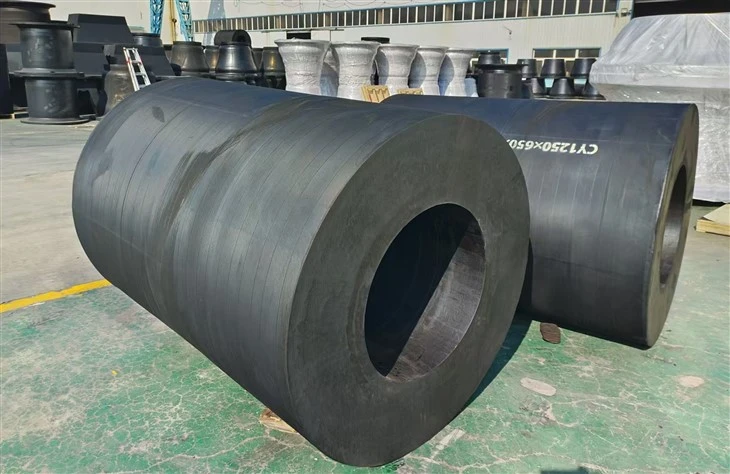

Port Cylindrical Fender

Name: China Port Cylindrical Fender Suppliers and Manufacturers - Factory Price Port Cylindrical Fender - Florescence
Brand: FLORESCENCE
SKU: 137157210

This cylindrical marine fender, primarily made of rubber, is designed to absorb docking impact energy through elastic deformation, protecting both port structures and vessels. Its simple cylindrical structure offers potential advantages such as cost-effectiveness, corrosion resistance, and adaptability to various berthing conditions. While it may not match the energy absorption capacity of specialized fenders for ultra-large ships, its relatively low maintenance requirements and flexible installation make it a common choice for small to medium-sized ports. Regular inspections are recommended to mitigate material degradation risks from prolonged environmental exposure.

1.Description of FLORESCENCE Marine Port Cylindrical Fender:

FLORESCENCE Cylinder Rubber Fenders

can mainly used for lots of marine areas, like vessel , port jetty and offshore platform. It can easy install and easy to replace when damage. we can install the fenders by chains, steel bar and brackets as clients want.

For our fenders we export to many countries for use. also send to lots of Navy for use, like Thailand Navy, France Navy and other Navy. For our products are ISO approved and CCS and BV approved.

For the material we use natural rubber from Thailand, and every step we inspect very carefully.

cylindrical-tug-fender05433456717_副本

Port Cylindrical Fender can use for berths serving large and small vessels. The wide range of available sizes can make the fenders use for many areas.Cylindrical Rubber Fenders proportional increase of reaction force and energy absorption all the way to the rated deflection is an advantage resulting in softer berthing.

5b87a33e0f722_副本 Application

• Bulk cargo berths

•  General cargo quays

•  Fishing and workboat berths

•  Pontoons and floating structures

•  RoRo and ferry terminals

•  Tug havens

rubber fender (20)

Model	L	ØD	Ød	20Chain	U-ring
CY800x400	1000 1500 2000 2500 3000	800	400	Ø25 Ø28 Ø32 Ø34 Ø40	Ø55
CY900x450	1000 1500 2000 2500 3000	900	450	Ø28 Ø30 Ø34 Ø38 Ø42	Ø60
CY1000x500	1000 1500 2000 2500 3000	1000	500	Ø28 Ø30 Ø38 Ø40 Ø44	Ø60
CY1100x550	1000 1500 2000 2500 3000	1100	550	Ø30 Ø32 Ø38 Ø40 Ø44	Ø65
CY1200x600	1000 1500 2000 2500 3000	1200	600	Ø30 Ø32 Ø38 Ø42 Ø46	Ø65
CY1300x600	1000 1500 2000 2500 3000	1300	650	Ø30 Ø32 Ø38 Ø42 Ø48	Ø65
CY1400x700	1000 1500 2000 2500 3000	1400	700	Ø34 Ø38 Ø44 Ø48 Ø52	Ø65
CY1500x750	1000 1500 2000 2500 3000	1500	750	Ø36 Ø40 Ø46 Ø48 Ø52	Ø65
CY1600x800	1000 1500 2000 2500 3000	1600	800	Ø38 Ø40 Ø46 Ø50 Ø54	-
