Foam Filled Fender For Dock

Introduction of foam filled fender Foam fender is crossed by a chain of variable size that allows fixation on each end via a flange and shackle. Externally fitted swivels are recommended to prevent the chain from wrapping on itself and wearing out prematurely. This configuration is suitable for...

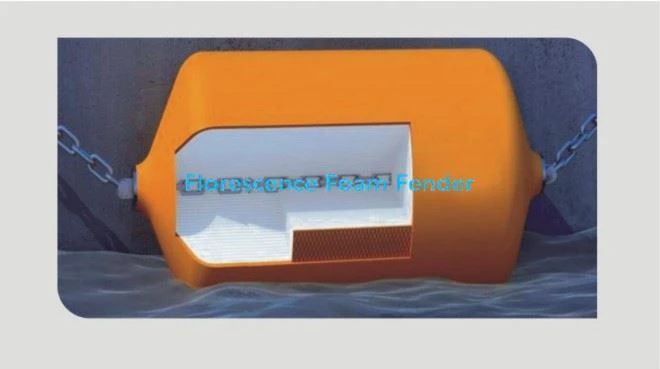

Introduction of foam filled fender

Foam fender is crossed by a chain of variable size that allows fixation on each end via a flange and shackle. Externally fitted swivels are recommended to prevent the chain from wrapping on itself and wearing out prematurely. This configuration is suitable for a horizontally floating fender (and cannot operate in a vertical position).
The chain emerges through two metal end flanges tensioning the chain and maintained by a shackle. In this configuration, the diameter of Fenders ranges from Ø300 mm to Ø4000 mm.

foam 1_

Application of EVA fender

1.Floating EVA fenders are used to provide cushioning and protection for ships, and are widely used in ships, offshore platforms, offshore, facilities, terminals and yachts.

2.It can be used for tugboats, work boats, pilot boats, high seas terminals, gravity ports, especially large tidal piers.

Marine foam fenders are also a viable option for ship-to-ship (STS) operations.

QQ20181022110218_

QQ20181022110213_

EVA (21)_ fender use (32)_

Features of Foam Filled Fender For Dock

1.Reinforced elastomer skin
Marine foam filled fenders have a nylon filament reinforced polyurethane skin which has excellent resistance to water, oil, ice, strong sunlight and abrasive surface. It remains flexible even at -40°C (-40°F) making it suitable for Tropical or Arctic operations.

2.Energy absorbing
Ship foam filled fender absorbs impact energy so colliding vessels will not damage the buoy or themselves.

3.Unsinkable foam
Only closed-cell foams are used in floating fenders. The micro-bubble matrix of the foam means it does not absorb water even if cut or damaged. This makes floating foam fenders impossible to sink.

4.Permanent colors
The polyurea skin is pigmented through its entire thickness, so colors will not wear off and will never need repainting. A wide choice of bright colors can help improve safety and identification.

Spcification of foam fender for ship

Product Name	Foam filled fender for dock
Size range	Diameter: 0.3-3.5m, Length: 0.6-7.0m
Color	As your request
Service life	6-8 years
Warranty	1 year

Factors on design and selection of foam rubber fender

1) Maximum Energy Absorption 2) Reaction Force 3) The distance requirements when two ships berth or one ship goes alongside wharf, including the maximum distance and the minimum distance 4) The size of vessels 5) The factors on storm from real environments and temperature changes.

CCS certificate for docking marine fenders

Foam CCS

Advantages of Foam Filled Fender For Dock

1.High energy absorption and low reaction force.

2.Many bright colors and shape available.

3.Ultra-tough, unsinkable design.

4.Remains fully functional even if skin is punctured.

5.Low maintenance.

6.Easy installation.

Installation

Netless Fenders are designed for easy installation. Their buoyant construction allows the option of a floating installation. The unique end fittings and ultra heavy duty internal chain are also ideal for a fixed hanging installation. Both installations can include a 2-point and 4-point mounting arrangement. Typical mounting hardware includes dock plate pad eyes, anchor bolts, shackles, swivels and stud link chain.
