Marine Cylindrical Rubber Fender

Boat and dock use marine cylindrical rubber fender Product details Product Functions and Features Cylindrical Fender is simple to install and operate which makes these units an economical solution for remote locations and for multi user berths where vessel types cannot always be predicted. With...

Product details

Product name	Rubber Fender
Material	rubber
Size	Customzied Size
Certification	BV/CCS/TUV/ISO/LR

Product Functions and Features

Marine Cylindrical Rubber Fender is simple to install and operate which makes these units an economical solution for remote locations and for multi user berths where vessel types cannot always be predicted. With advantages of progressive load-deflection Cylindrical Fenders are suitable for both large and small vessels, and with a wide choice of sizes and diameter ratios , the performance of cylindrical fender can be closely matched to requirements in each case.

Application

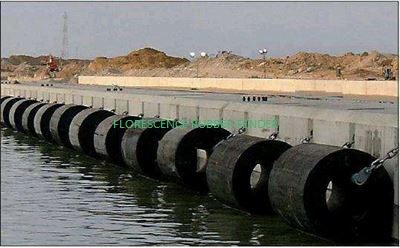

Marine offshore berthing:Quay,jetty, wharf, dolphin,dock,container terminal,tanker terminal,RoRo cruise and monopolies

product-1929-1070

Marine Fendering:
We can offer cost effective and efficient solutions to suit practically any marine rubber fendering problem and provides a broad range of marine rubber fenders with short lead times.

Fenders are used by a wide range of clientele from several industries, including tugboat & workboat operators, shipbuilders, the dredging and offshore industry and in construction.

turise Fenders 13

Specification	Out Diameter	Inner Diameter	Length	Reaction Force (KN)		Energy Absorb (KN-M)		Rated Compression	Tolerance
Specification	Out Diameter	Inner Diameter	Length	Standard Reaction Force	High Reaction Force	Standard Reaction Force	High Reaction Force	Rated Compression	Tolerance
BLT-Y 150	150	75	500-25000	44	73	1.5	2.3	50%	10%
BLT-Y 200	200	100		60	95	2.6	4.2
BLT-Y 250	250	125		75	120	4	6.5
BLT-Y 300	300	150		89	143	6	9
BLT-Y 350	350	175		104	167	8	13
BLT-Y 400	400	200		119	191	10	17
BLT-Y 450	450	225		128	210	14	24
BLT-Y 500	500	250		148	239	16	26
BLT-Y 600	600	300		179	286	24	27
BLT-Y 700	700	350		208	334	31	50
BLT-Y 800	800	400		237	383	41	66
BLT-Y 900	900	450	1000-16000	268	430	52	84
BLT-Y 1000	1000	500		297	479	64	103
BLT-Y 1100	1100	550		331	528	77	129
BLT-Y 1200	1200	600		363	574	95	152
BLT-Y 1300	1300	650		392	623	108	179
BLT-Y 1400	1400	700		422	670	128	208
BLT-Y 1500	1500	750		451	718	147	238
BLT-Y 1600	1600	800		481	776	176	282
BLT-Y 1800	1800	900	1000-6000	541	872	247	406
BLT-Y 2000	2000	1000	1000-6000	653	1054	321	584
